Why UPS Capacity Matters in Critical Infrastructure

UPS capacity is one of the most essential (but often misunderstood) metrics in power protection planning. Selecting the wrong capacity, whether undersized or overprovisioned, can result in poor performance, wasted investment, or even infrastructure failure. For any application involving critical equipment - from servers and storage to network cards, control systems, and industrial devices - accurately calculating the required uninterruptible power supply (UPS) capacity is fundamental to uptime and operational continuity.

At Legrand, we help organizations align UPS capacity with their mission‑critical needs — from compact 1 kVA edge deployments to multi‑megawatt data center clusters powering today’s hyperscale environments.

This guide explains how UPS capacity is determined, the factors that influence sizing decisions, and how voltage, current, and runtime requirements shape the right solution. It also outlines how Legrand’s scalable UPS systems support precise sizing across a range of kVA ratings and backup scenarios.

Defining UPS Capacity: The Basics

UPS capacity is typically expressed in volt-amperes (VA) or kilovolt-amperes (kVA), representing the maximum amount of apparent power the UPS can deliver to connected equipment. It’s a function of both the voltage and current the system can output under load. The right UPS capacity depends not only on the total equipment load but also on load type, runtime requirements, and system architecture.

While real power (measured in watts) indicates the energy consumed, UPS sizing is based on apparent power (VA) because it accounts for power factor - how efficiently current is being converted into useful work.

How UPS Capacity Is Calculated

Step-by-Step Sizing Process:

1. Inventory Your Critical Load

• List all equipment that needs backup protection (e.g., servers, routers, storage arrays, industrial controllers).

• Identify the VA, watt, or amp rating for each device. This is usually found on the device label or spec sheet.

2. Convert to a Common Metric

• If power is given in watts:

• If power is given in amps (A):

• Use 0.8 as a typical power factor if unspecified.

3. Add a Capacity Buffer

• Multiply the total VA by 1.2 to 1.25 to account for headroom and future expansion.

• This ensures the UPS runs at no more than 80% of its rated capacity under normal conditions.

4. Match to UPS kVA Rating

• Round up to the nearest UPS size based on your buffered VA load.

Example:

UPS capacity required: Minimum 6 kVA for proper margin and redundancy.

Factors That Influence UPS Sizing

UPS capacity must be determined based on more than just connected devices. Several external and system-level factors affect the required rating:

1. Load Type

• Resistive (heaters, incandescent bulbs) vs. inductive (motors, transformers, servers).

• Inductive loads draw higher inrush current and require additional headroom.

2. Number of Phases

• Single-phase UPS systems (e.g., 230V) are ideal for small to mid-size IT or office environments.

• Three-phase UPS systems (208V, 400V, 480V) suit larger kVA loads in industrial or data center environments.

3. Battery Runtime and Recharge

• Runtime is not fixed to UPS size; a 10 kVA UPS may provide 5 or 60 minutes depending on batteries.

• Use this basic formula to estimate recharge:

∘  Legrand’s high-efficiency UPS systems support fast-charging modules that restore 80% capacity in under 4–6 hours.

• As a rule of thumb, runtime is inversely proportional to load: halving the connected load approximately doubles runtime. Legrand provides runtime calculators that model actual draw against available battery amp-hour capacity.

4. Power Factor Rating

• New UPS systems are often rated at PF = 1.0 (real power = apparent power).

• Older systems may have PF = 0.8, meaning a 100 kVA UPS delivers only 80 kW.

Legrand’s modern UPS platforms deliver full rated power at PF 1.0, reducing footprint and maximizing capacity. Upgrading to a PF 1.0 system like Legrand’s KEOR MOD could reduce total kVA requirement by 20–25%, freeing up rack space, reducing heat, and cutting energy costs.

5. Scalability and Redundancy

• Modular UPS designs like Trimod HE allow incremental capacity upgrades in 5 kVA blocks.

• Redundant configurations (N+1, 2N) increase total capacity requirements.

UPS Sizing Checklist

Before selecting a UPS, ensure you’ve reviewed:

Key Applications for Accurate UPS Capacity Planning

UPS capacity sizing is essential for:

• Data Centers: High-density computing and scalable backup.

• Healthcare Facilities: Diagnostic and life-saving equipment.

• Industrial Automation: Motors, sensors, control panels.

• Commercial IT & Telecom: Switches, routers, servers.

• Retail and POS Systems: Reliable transactional uptime.

How Legrand UPS Systems Support Capacity Planning

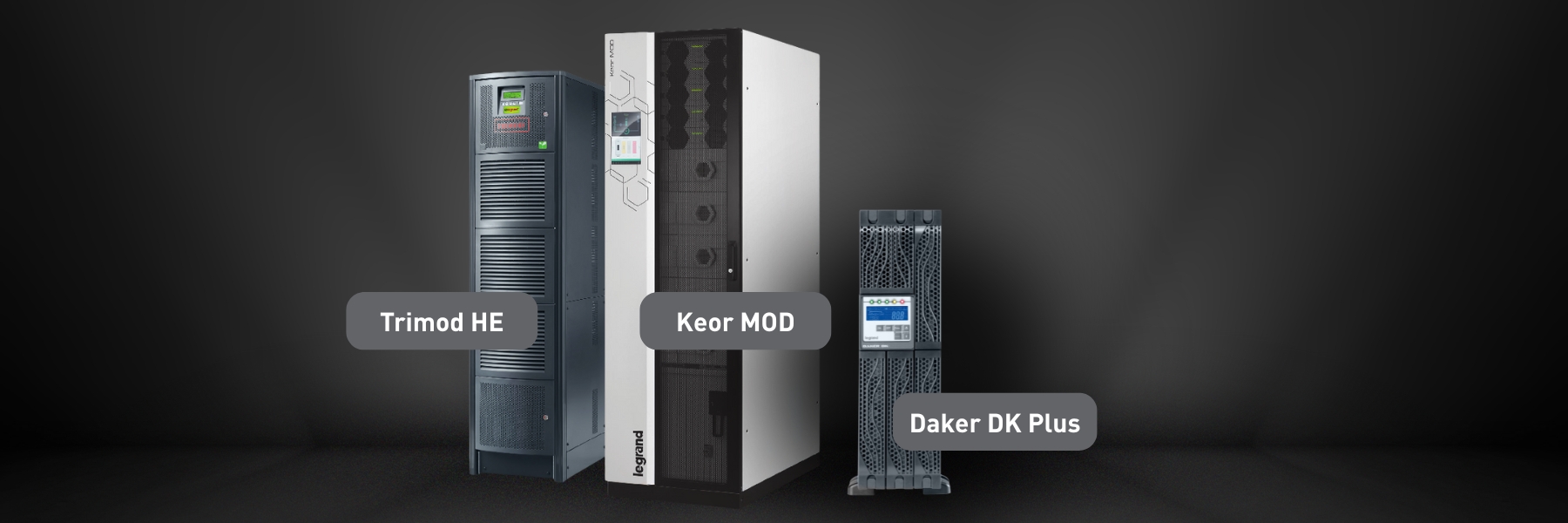

Legrand offers a robust portfolio of UPS systems tailored to varied capacity needs including:

• KEOR MOD: 25–250 kVA modular, three-phase UPS with scalable architecture.

• Trimod HE: 5–80 kVA modular UPS with hot-swappable power and battery modules.

• Daker DK Plus: 1–10 kVA single-phase UPS for small IT and critical branch environments.

Features across Legrand’s UPS range:

• Modular, field-upgradable capacity

• PF 1.0 for full real power delivery

• Advanced runtime and recharge configuration

• Monitoring via SNMP, Modbus, and DCIM-ready interfaces

Right-Sizing UPS Capacity Protects More Than Just Power

Getting UPS capacity right is a matter of both engineering precision and operational foresight. It requires a thorough understanding of total load, system architecture, battery runtime expectations, and application-specific constraints. Whether you're protecting a small network closet or a multi-megawatt facility, accurate UPS capacity planning ensures reliable power delivery and minimizes the risk of downtime.

Legrand’s uninterruptible power systems are built to support this precision, with modular capacity scaling, advanced monitoring, and flexible runtime options. Our technical experts can help assess your current infrastructure and design a right-sized UPS deployment aligned with your uptime objectives and growth roadmap.

To find the right UPS capacity for your application, consult with a Legrand power specialist or explore our full UPS solutions portfolio.
