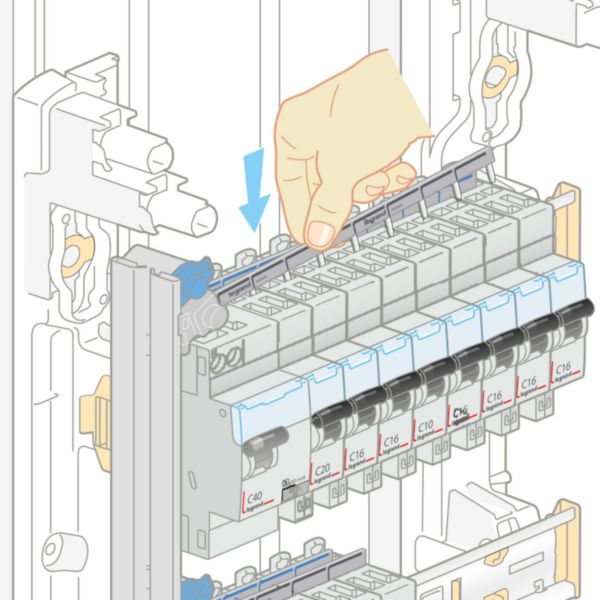

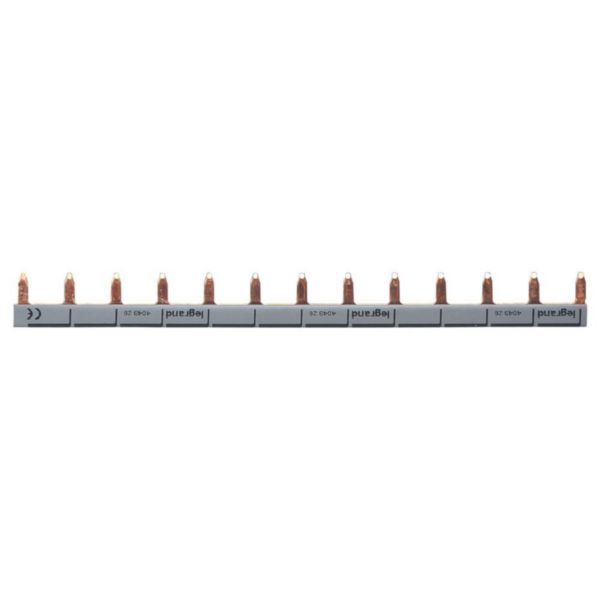

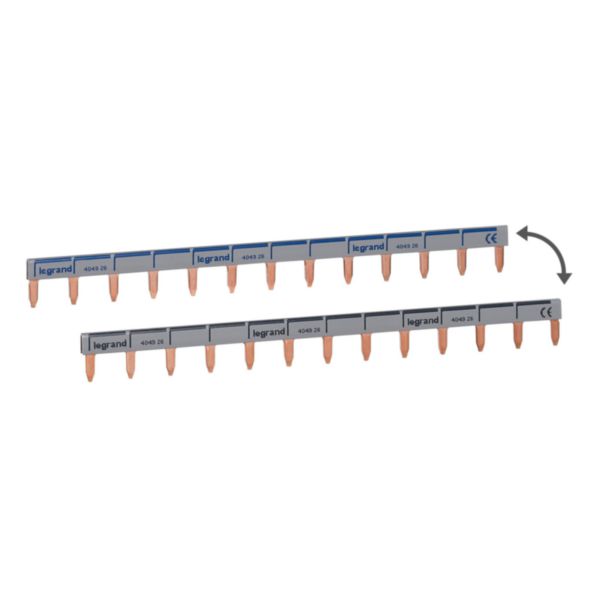

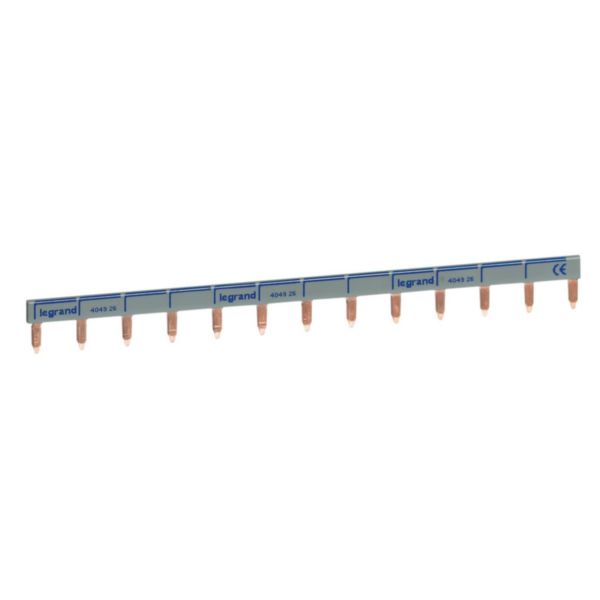

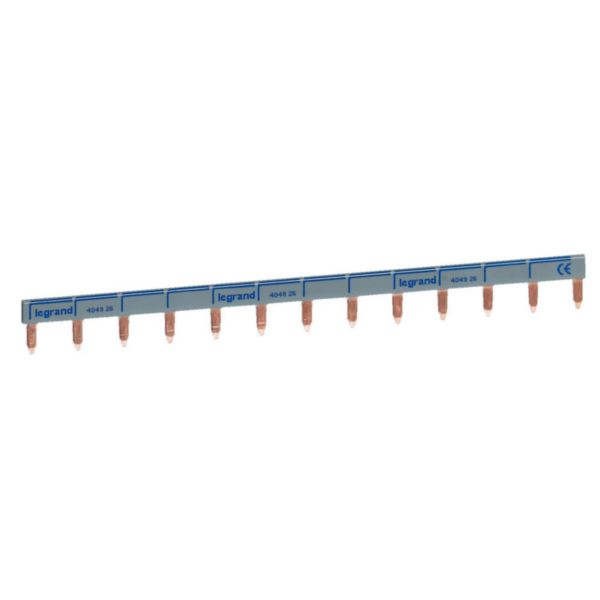

Supply busbar - prong-type - 1P+N universal - max 13 devices connected - 1 row
HX3
LEGRAND
Supply busbar - prong-type - 1P+N universal - max 13 devices connected - 1 row
REF. 404926
EAN.
3245064049269
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Number of phases | 1 |
|---|---|
| Number of poles | 1 |
| Suitable for number of devices | 13 |
| Module width | 17.7 mm |
| Cross section | 16 mm² |
| Length | 220 mm |
| Can be cut to size | Yes |
| Width in number of modular spacings | 13 |
| Rated permanent current Iu | 63 A |
| Type of electric connection | Other |
| Insulated | Yes |
| Rated surge voltage | 2 kV |
| Conditioned rated short-circuit current Iq | 0.63 kA |
|---|---|
| Max. rated operation voltage Ue | 400 V |
| Rated short-time withstand current lcw | 1.92 kA |
| Suitable for devices with N-conductor | Yes |
| Suitable for devices with auxiliary switch | No |
| Colour | Other |
| Height | 220 mm |
| Number of rows | 1 |
| Operating / setting temperature | -20-50 °C |
| Storage temperature | -40-70 °C |
| Halogen free | Yes |
| Busbar type supplied | Horizontal |
Documentation
2 documents
Catalogue Technical Page
Catalogue Commercial Page
3 documents
PEP
PEP
Constructor Declaration
