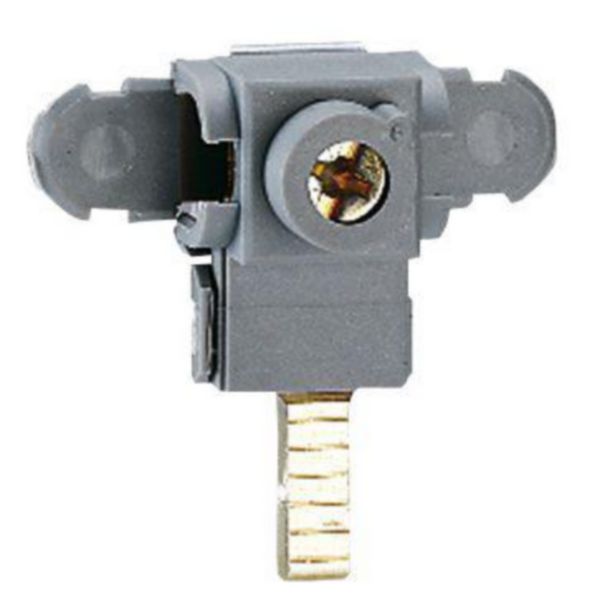

Entry Terminal - for universal 1P+N or 1P Supply busbars
-
LEGRAND
Entry Terminal - for universal 1P+N or 1P Supply busbars
REF. 404905
EAN.
3245064049054
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Number of poles | 1 |
|---|---|
| Nominal current | 100 A |
| Connection type | Screwing |
| Mounting method | Other |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | No |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 4-25 mm² |
|---|---|
| Conductor cross section, output | 25-25 mm² |
| Conductor cross section, output AWG | 4-4 |
| Contact safe | Yes |
| Height | 37 mm |
| Width | 17.5 mm |
| Depth | 19 mm |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Type of distribution blocks | Multifunction |
| Terminals capacity | 4-25 mm² |
| Label space/information surface | No |
