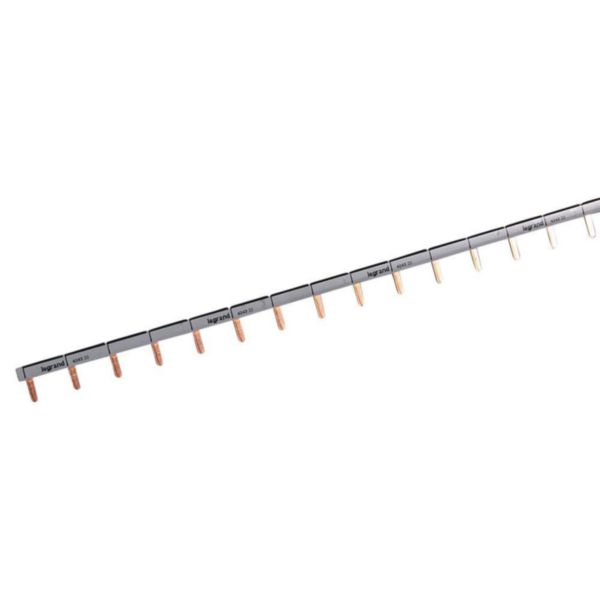

Supply busbar - prong-type - 1P for auxiliary - max 37 devices connected - meter
-
LEGRAND
Supply busbar - prong-type - 1P for auxiliary - max 37 devices connected - meter
REF. 404933
EAN.
3245064049337
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Number of phases | 1 |
|---|---|
| Number of poles | 37 |
| Suitable for number of devices | 37 |
| Module width | 26.2 mm |
| Cross section | 16 mm² |
| Length | 980 mm |
| Width in number of modular spacings | 56 |
| Rated permanent current Iu | 63 A |
|---|---|
| Type of electric connection | Pin |
| Insulated | Yes |
| Max. rated operation voltage Ue | 230 V |
| Suitable for devices with N-conductor | Yes |
| Suitable for devices with auxiliary switch | Yes |
| Colour | Other |
Documentation
1 document
PEP
