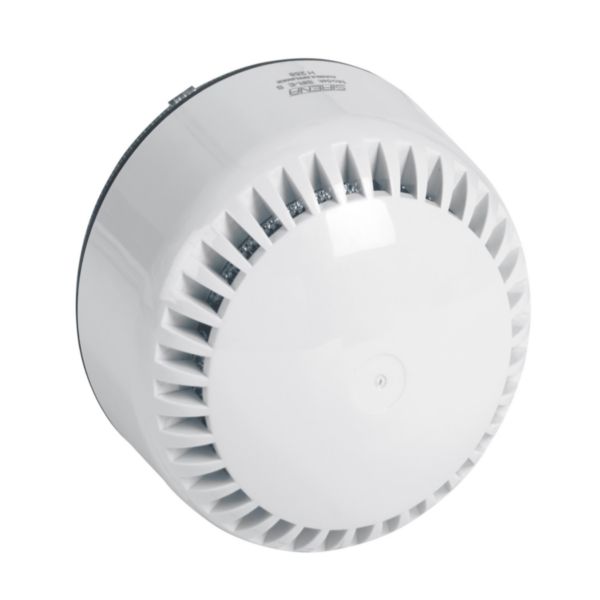

Multi-sound electronic siren IP65 - IK08 - 64 electronic sounds

LEGRAND

Multi-sound electronic siren IP65 - IK08 - 64 electronic sounds

REF. 041398 EAN. 3414971498266
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Electromechanical and electronic sirens
  • Multi-sound electronic sirens - To be equipped with base for LED beacons and multi-sound electronic sirens Cat.Nos 0 413 81/82/83 - 64 electronic sounds possible, 2 channels - Configuration by microswitches - Adjustable sound level from 87 to 100 dB (1m) - Dimensions : 92 mm x 60 mm - Power supply from 12 V~ and = to 230 V~ depending on the installed base - IP 65 - IK 08

Technical characteristics

Number of tones 64
Housing colour Grey
Housing material Plastic
Loudness 102 dB
Nominal voltage 12 V, 12-12 V
Degree of protection (IP) IP65
Type of current AC/DC
Electricity consumption 0.28 A
With contact No
Width 92 mm
Height 60 mm
Depth 92 mm
degree of impact strength (IK) IK08
Operating / setting temperature -10-+55 °C
Storage temperature 0-+55 °C
Mounting method Surface mounted
Contains Batteries and/or Accumulator No
Connected object No
Product use function Alarm systems

Documentation

1 document
Instruction Use
LE10703AA.pdf pdf (2.53 Mo)
2 documents
Catalogue Commercial Page
ex223001_0551.pdf pdf (0.1 Mo)
Catalogue Technical Page
ex223001_0533.pdf pdf (0.07 Mo)
