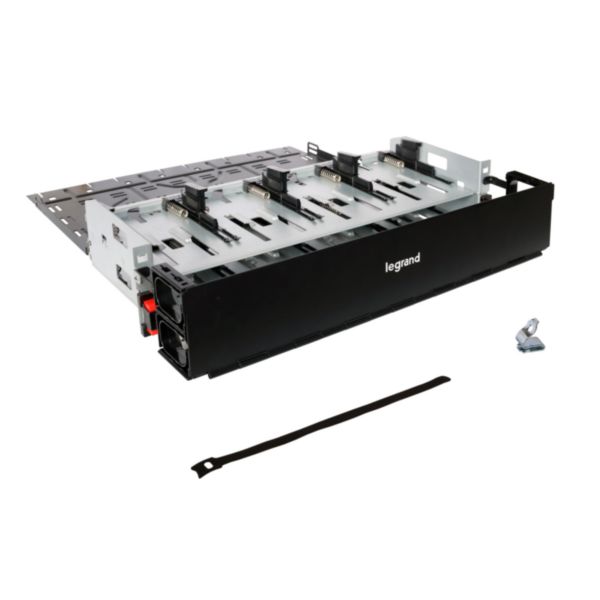

Name: HD fibre optic modular panel 19 inches 2U to be equipped
SKU: 032176

LCS³ LEGRAND

HD fibre optic modular panel 19 inches 2U to be equipped

REF. 032176 EAN. 3414971929180

This high density modular panel 19 inches accomodates fibre optic terminations with modularity thanks to a large choice of preterminated, spliced and copper cassettes. Equipped with front door with integrated identification.

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Description

This high density modular panel 19 inches accomodates fibre optic terminations with modularity thanks to a large choice of preterminated, spliced and copper cassettes. Equipped with front door with integrated identification.

Product characteristics

Height 2U
For fibre optic splice or preterminated cassettes to reach up to 96 SC, 48 ST or 192 LC connectors.
To equip with 8 standard cassettes or 16 slim cassettes.
Equipped with new generation soluclip system : automatic fixing without screw on enclosure or cabinet uprights (with a thickness from 1,5 to 2mm max).
Equipped with rear cable management and front cord management.

Recommendation / Restriction

Universal mounting on cabinets with automatic earthing on unpainted uprights. Earthing connection possible with cord and screw in case of painted uprights.

The product's benefits

Installation

This panel is equipped with 19 inch quick fixing solution for automatic mounting (no screws required) and grounding.

Usage

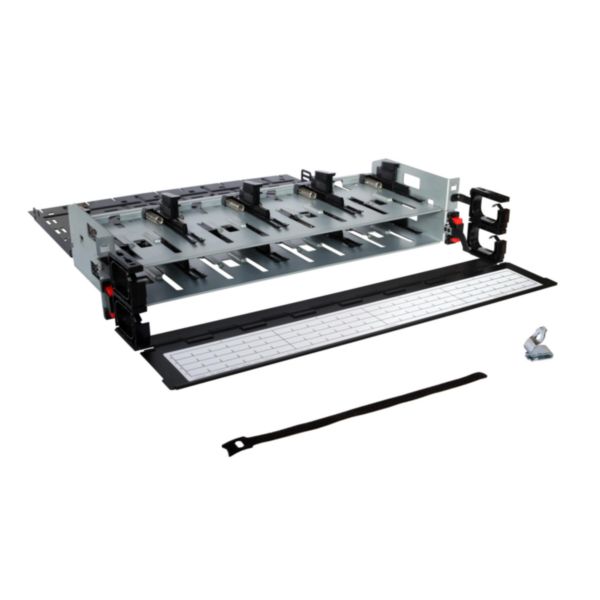

Cassettes used in this panel can be removed individually by simply pressing the button at the front for ease of maintenance. Front, side and bottom protection of the patch cords. Labelling system on the backside of the door. Integrated front door for protection against intrusive patching and lasers.

Avantages

With 19 inch quick fixing solution for automatic mounting (no screws required) and automatic grounding on 19'' uprigth with conductive surface
Scalability and space saving : mix fibre and copper in one U.

Technical characteristics

With front plate	No
With housing	No
With pigtails	No
Fibre type	Other
Colour	Black
Mounting method	482.6 mm (19 inch) mounting
Number of height units	2
Height	89 mm
Width	483 mm

Depth	492 mm
degree of impact strength (IK)	IK05
Operating / setting temperature	-30-60 °C
Storage temperature	-30-60 °C
Terminal marking indication	Yes
Prewired	No
Label space/information surface	Yes
Fitted with door or cover	Yes
Cable support	Other
