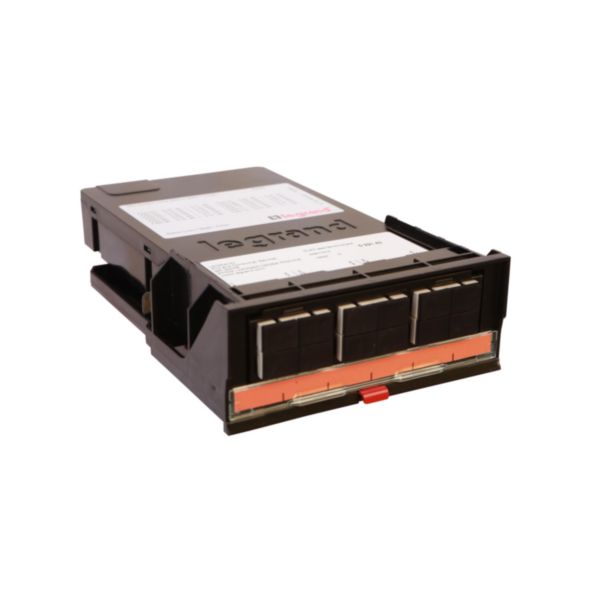

Fibre optic cassette - preterminated MTP to 12 SC - multimode OM4 - polarity A/C

Name: Fibre optic cassette - preterminated MTP to 12 SC - multimode OM4 - polarity A/C
SKU: 032143

LCS³ LEGRAND

REF. 032143 EAN. 3414970962164

This preterminated cassette transforms parallel links (MTP/MPO ultra high density connector) into duplex connections.

Compare You can only compare 4 products, you must remove 1 to add this one

This preterminated cassette transforms parallel links (MTP/MPO ultra high density connector) into duplex connections.

Already equipped with preterminated fibres, directly connectible to female MTP connector with 12 fibres.
High performance MTP cassette with maximal insertion loss 0,5dB.
Sliding cassette with push button for fast extraction of the cassette from the front. Extraction from the rear also possible.
Compatible with MPO

Fast automatic extraction at the front, easy to use, giving better accessibility to the patchcords when move, adds & changes. Extraction from the rear also possible.

Suitable for number of couplings/adaptors	12
With number of couplings/adaptors	12
With front plate	No
With housing	Yes
With pigtails	No
Fibre type	Multi mode 50/125
Fibre class	OM4
Type of connector external	SC duplex
