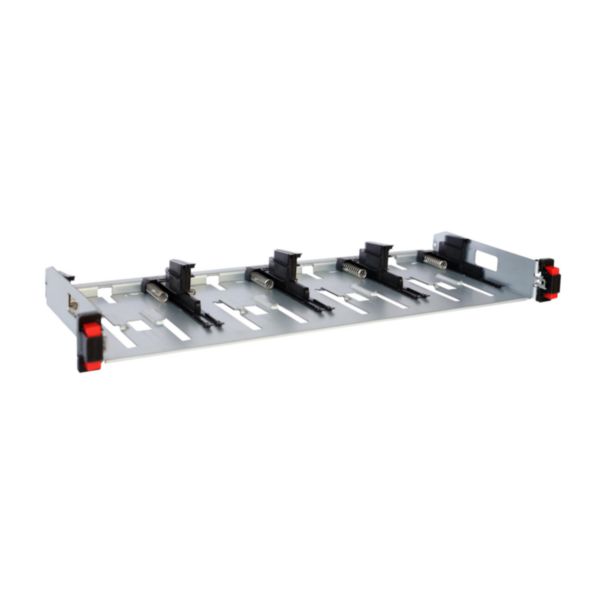

HD fibre optic modular panel 19 inches 1U to be equipped

LCS³ LEGRAND

HD fibre optic modular panel 19 inches 1U to be equipped

REF. 032175 EAN. 3414971929173

This high density modular panel 19 inches accomodates fibre optic terminations with modularity thanks to a large choice of preterminated, spliced and copper cassettes.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This high density modular panel 19 inches accomodates fibre optic terminations with modularity thanks to a large choice of preterminated, spliced and copper cassettes.

Product characteristics
  • Height 1U
  • For fibre optic splice or preterminated cassettes to reach up to 48 SC, 24 ST or 96 LC connectors.
  • To equip with 4 standard cassettes or 8 slim cassettes.
  • Equipped with new generation soluclip system : automatic fixing without screw on enclosure or cabinet uprights (with a thickness from 1,5 to 2mm max).
  • Rear cable management and front cord management options.
Recommendation / Restriction
  • Universal mounting on cabinets with automatic earthing on unpainted uprights. Earthing connection possible with cord and screw in case of painted uprights.

The product's benefits

Installation
  • This panel is equipped with 19 inch quick fixing solution for automatic mounting (no screws required) and grounding.
Usage
  • Cassettes used in this panel can be removed individually by simply pressing the button at the front for ease of maintenance.
Avantages
  • With 19 inch quick fixing solution for automatic mounting (no screws required) and automatic grounding on 19'' uprigth with conductive surface
  • Scalability and space saving : mix fibre and copper in one U.

Technical characteristics

With front plate No
With housing No
With pigtails No
Fibre type Other
Colour Other
Mounting method 482.6 mm (19 inch) mounting
Number of height units 1
Height 44 mm
Width 483 mm
Depth 201 mm
degree of impact strength (IK) IK05
Operating / setting temperature -30-60 °C
Storage temperature -30-60 °C
Terminal marking indication Yes
Prewired No
Label space/information surface No
Fitted with door or cover No
Cable support Other
