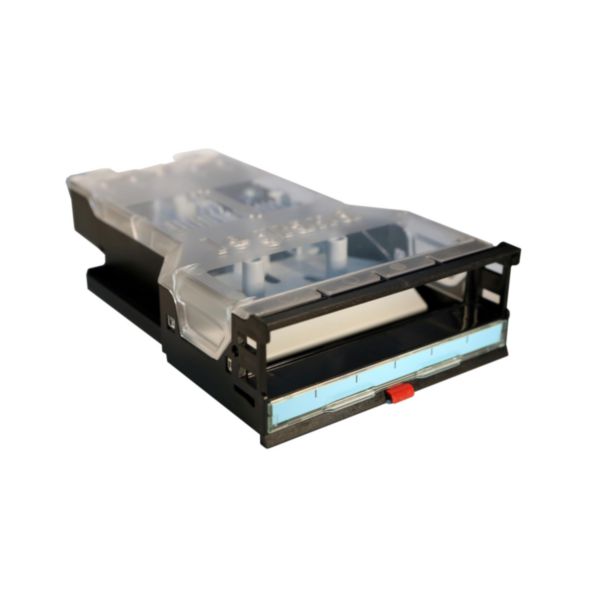

Fibre optic splice cassette for High Density and modular fibre optic panel

LCS³ LEGRAND

Fibre optic splice cassette for High Density and modular fibre optic panel

REF. 032141 EAN. 3414970962126

This fibre optic splice cassette accomodates and protects the sleeves of spliced pigtails. To be equipped with a large choice blocks (LC, LC APC, SC, SC APC, ST), it's the perfect solution for short deadlines and flexible answers.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This fibre optic splice cassette accomodates and protects the sleeves of spliced pigtails. To be equipped with a large choice blocks (LC, LC APC, SC, SC APC, ST), it's the perfect solution for short deadlines and flexible answers.

Product characteristics
  • Sliding cassette with push button for fast extraction of the cassette from the front.
  • Takes any modular fibre optic block (LC, LC APC, SC, SC APC, ST, MTP)
  • Supplied with removable pigtail holders and 2 PG11 glands.
  • With coiling area
  • Transparent cover for a direct view of the terminations inside the cassette.

The product's benefits

Installation
  • Fast automatic extraction at the front
Usage
  • Fast automatic individuak extraction at the front, easy to use, giving better accessibility to the patchcords when move, adds & changes.

Technical characteristics

With splice holder Yes
Suitable for Other
Length 185 mm
Width 110.4 mm
Height 43.7 mm
Mounting method Other
