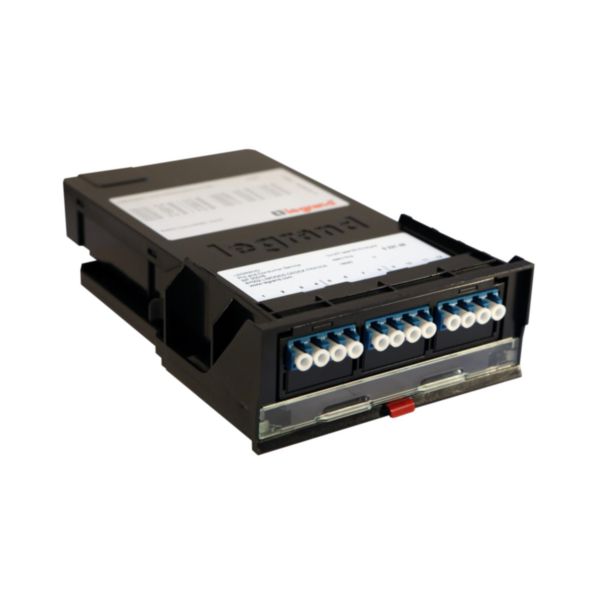

Fibre optic cassette - preterminated MTP to 12 LC - singlemode OS2 - polarity A/C

Name: Fibre optic cassette - preterminated MTP to 12 LC - singlemode OS2 - polarity A/C
SKU: 032149

LCS³ LEGRAND

REF. 032149 EAN. 3414971420250

This preterminated cassette transforms parallel links (MTP/MPO ultra high density connector) into duplex connections.

Compare You can only compare 4 products, you must remove 1 to add this one

This preterminated cassette transforms parallel links (MTP/MPO ultra high density connector) into duplex connections.

Already equipped with preterminated fibres, directly connectible to female MTP connector with 12 fibres.
High performance MTP cassette with maximal insertion loss 0,5dB.
Sliding cassette with push button for fast extraction of the cassette from the front. Extraction from the rear also possible.
Compatible with MPO

Fast automatic extraction at the front, easy to use, giving better accessibility to the patchcords when move, adds & changes. Extraction from the rear also possible.

Category	OS2
Connection type front side	LC-Duplex
Number of connectors front side	12
Connection type backside	MTP-M
Number of connectors rear side	1
Colour	Black
Crossed	No

Width	110.3 mm
Height	43.7 mm
Depth	200 mm
Operating / setting temperature (Min-Max)	-10-60 °C
Storage temperature (Min-Max)	-10-60 °C
Halogen free	Yes
Label space/information surface	Yes
