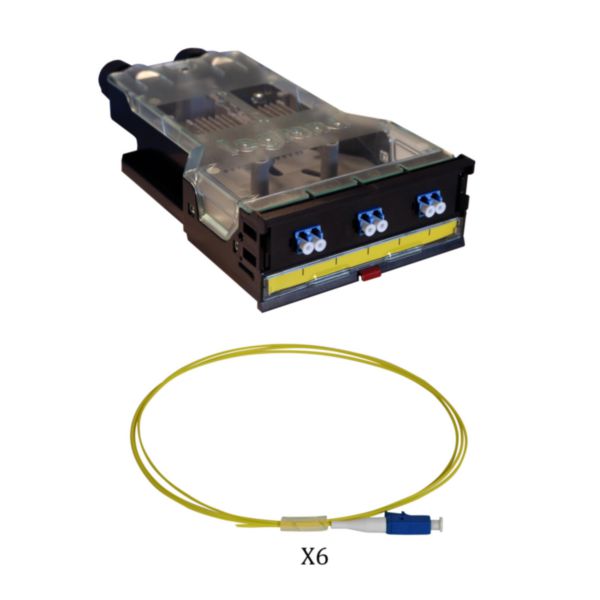

Fibre optic cassette - pre-equipped with 6 pigtails and 1 LC duplex block for 6 fibres - singlemode OS2

LCS³ LEGRAND

Fibre optic cassette - pre-equipped with 6 pigtails and 1 LC duplex block for 6 fibres - singlemode OS2

REF. 032185 EAN. 3414971400436

This fibre optic splice cassette delivered with 6 pigtails OS2 and 1 LC duplex block for 6 fibres accomodates and protects the sleeves of spliced pigtails. It's the perfect solution for short deadlines and flexible answers.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This fibre optic splice cassette delivered with 6 pigtails OS2 and 1 LC duplex block for 6 fibres accomodates and protects the sleeves of spliced pigtails. It's the perfect solution for short deadlines and flexible answers.

Product characteristics
  • Sliding cassette with push button for fast extraction of the cassette from the front.
  • Supplied with removable pigtail holders and 2 PG11 glands.
  • With coiling area
  • Transparent cover for a direct view of the terminations inside the cassette.

The product's benefits

Installation
  • Provide service by delivering the cassette, the pigtails and the adapter in one catalogue number (instead of 3).
Usage
  • Fast automatic individual extraction at the front, easy to use, giving better accessibility to the patchcords when move, adds & changes.

Technical characteristics

Category OS2
Connection type front side LC-Duplex
Number of connectors front side 6
Connection type backside Other
Number of connectors rear side 0
Colour Black
Crossed No
Width 110.3 mm
Height 43.7 mm
Depth 185 mm
Operating / setting temperature (Min-Max) -10-60 °C
Storage temperature (Min-Max) -10-60 °C
