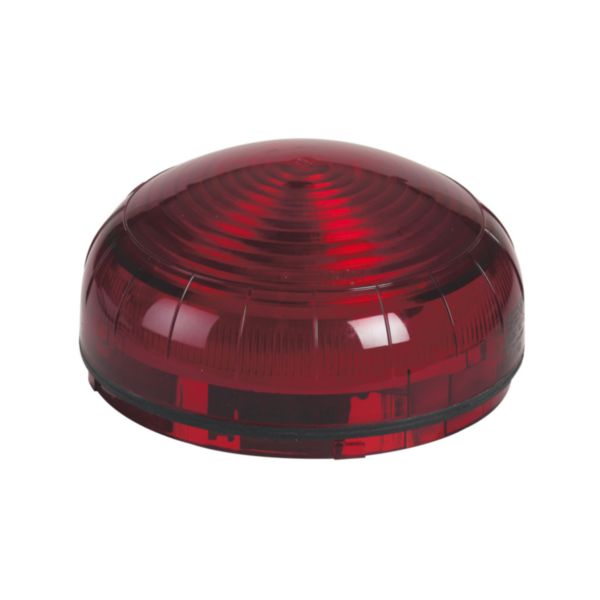

Compact size LED beacon to be equipped with base - 1100 Candelas - IP65 IK08 - Red

LEGRAND

Compact size LED beacon to be equipped with base - 1100 Candelas - IP65 IK08 - Red

REF. 041387 EAN. 3414971498044
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Illuminated signalling - equipment and Accessories
  • Compact size LED beacons - To be equipped with base Cat.No 0 413 81/82/83 - Adjustable light intensity (3 levels) - 5 separate light effects : steady, single or Double flash, strobe effect, random - Can be controlled via independent electrical contacts and/or push - buttons - Dimensions : height 42.5 mm, 92 mm - IP65 - IK 08 - Power supply from 12 V~ and = to 230 V~ depending on the installed base 1100 Candelas - Red

Technical characteristics

Function flashing light Yes
Function blinking light Yes
Blinking frequency (Min-Max) 720-1000 1/min
Function continuous light Yes
Function rotating light No
Function pulsating light Yes
With infrared No
Nominal voltage (Min-Max) 12-12 V
Voltage type AC/DC
Electricity consumption 0.25 A
Power 2.94 W
Colour of lamp hood Red
Housing material Plastic
Housing colour Other
Mounting method Surface mounting
Solar operation No
Number of modes 15
Approved according to ICAO No
Ambient temperature (Min-Max) -30-+55 °C
Lamp type LED not exchangeable
Luminous intensity (Min-Max) 640-640 cd
Degree of protection (IP) IP65
Width 92 mm
Height 42.5 mm
Dimmable Yes

Documentation

1 document
Instruction Use
LE10702AB.pdf pdf (1.75 Mo)
2 documents
Catalogue Commercial Page
ex223001_0552.pdf pdf (0.09 Mo)
Catalogue Technical Page
ex223001_0533.pdf pdf (0.07 Mo)
