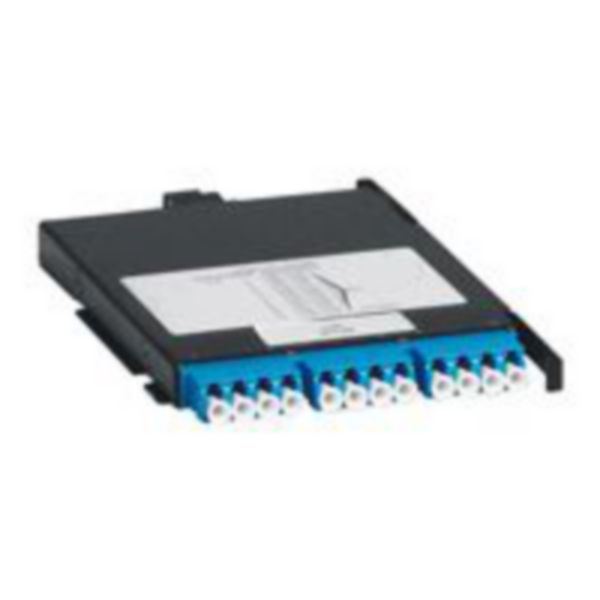

Ultra high density cassette MPO multimode 12 LC OM4

LCS³ LEGRAND

Ultra high density cassette MPO multimode 12 LC OM4

REF. 032154 EAN. 3414970962300

Ultra high density cassette clipped directly to the fibre optic drawers ref. 032150, 032051, 032052, 032053

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Ultra high density cassette clipped directly to the fibre optic drawers ref. 032150, 032051, 032052, 032053

Product characteristics
  • OM4 multi-mode 50/125μm
  • 12 LC OM4 type A/C connectors
  • Sliding cassette from front
Recommendation / Restriction
  • Compliant with ANSI/TIA-568-C.3 : Optical Fiber Cabling Components Standard, TIA-604-10 : Fiber Optic Intermateability Standard, LC TIA-604-5 : Fiber Optic Intermateability Standard, MTP/MPO, RoHS

Technical characteristics

Suitable for number of couplings/adaptors 12
With number of couplings/adaptors 12
With front plate No
With housing Yes
With pigtails No
Fibre type Multi mode 50/125
Fibre class OM4
Type of connector external LC-Duplex
Type of connector interior MT/MPO
Colour Black
RAL-number 9017
Mounting method Other
Height 12 mm
Width 96 mm
Depth 129 mm

Documentation

3 documents
Technical Sheet
S000099681FR-02.pdf pdf (1.78 Mo)
Technical Sheet
S000099681EN-02.pdf pdf (1.79 Mo)
Instruction Use
LE10267AD.pdf pdf (3.06 Mo)
1 document
Catalogue Commercial Page
ex223001_1002.pdf pdf (0.18 Mo)
