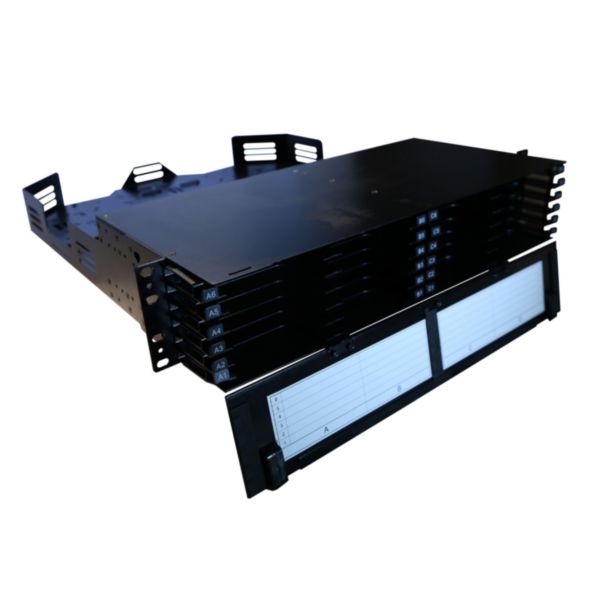

UHD modular fibre optic drawer with cord management at front and back 2U to be equipped with cassettes

LCS³ LEGRAND

UHD modular fibre optic drawer with cord management at front and back 2U to be equipped with cassettes

REF. 032152 EAN. 3414970962287

Ultra high density modular fibre optic drawers, to be equipped with cassettes. Fixed modular chassis for holding UHD cassettes. 2U maximum capacity, holds up to 24 cassettes and 288 LC connectors.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Ultra high density modular fibre optic drawers, to be equipped with cassettes. Fixed modular chassis for holding UHD cassettes. 2U maximum capacity, holds up to 24 cassettes and 288 LC connectors.

Product characteristics
  • Maximum capacity 2U (holds up to 24 cassettes) - 288 LC connectors
  • Fixed and modular chassis for the reception of the cassettes
  • Drawer dimensions (WxHxD mm) : 483 x 88 x 597
  • Cassettes to clip directly into the fibre optic drawer : OM4 multimode ref. 032154, OS2 singlemode ref. 032155
Recommendation / Restriction
  • Compliant with ANSI/TIA-568-C.3 : Optical Fiber Cabling Components Standard, TIA-604-10 : Fiber Optic Intermateability Standard, LC, TIA-604-5 : Fiber Optic Intermateability Standard, MTP/MPO, RoHS

The product's benefits

Installation
  • Available with or without cable management tray. Highest density on the market.
Usage
  • Perfect fibre patching applications and easy maintenance.

Technical characteristics

Suitable for number of module inserts 24
With front plate Yes
With housing Yes
With pigtails No
Fibre type Other
Colour Black
RAL-number 9017
Mounting method 482.6 mm (19 inch) mounting
Number of height units 2
Height 88 mm
Width 483 mm
Depth 598 mm

Documentation

3 documents
Technical Sheet
S000099681FR-02.pdf pdf (1.78 Mo)
Technical Sheet
S000099681EN-02.pdf pdf (1.79 Mo)
Instruction Use
LE10267AD.pdf pdf (3.06 Mo)
1 document
Catalogue Commercial Page
ex223001_1002.pdf pdf (0.18 Mo)
