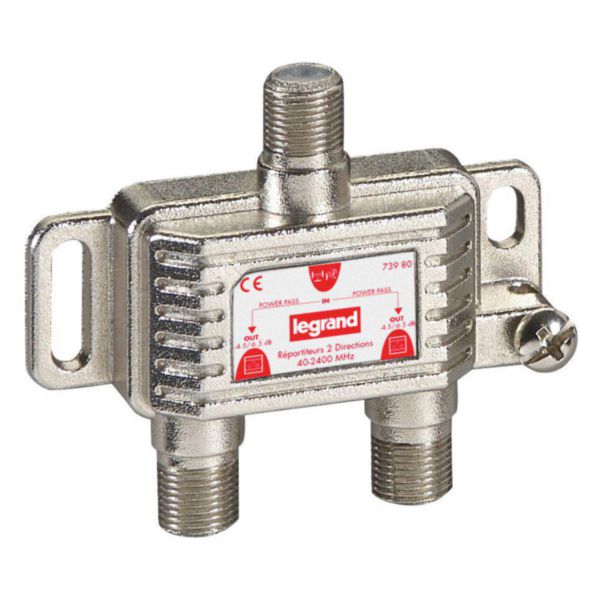

TV coaxial Hertzian and satellite splitter - 0-2400 MHz - 2 outputs -3.5 modules

Name: TV coaxial Hertzian and satellite splitter - 0-2400 MHz - 2 outputs -3.5 modules
SKU: 073980

LEGRAND

REF. 073980 EAN. 3245060739805

Compare You can only compare 4 products, you must remove 1 to add this one

Home network - create your enclosure - This modular multimedia system fits in any DIN cabinet (easy plug) and in a 19" cabinet with the multi-application DIN rail kit - It enables distribution in the home of phone, data, internet on RJ 45 and TV over coaxial - Each RJ 45 can be assigned to a different application via patch cords, using the same network, therefore giving maximum flexibility - Aesthetics and look of the enclosure designed to give maximum satisfaction - No visible cable or patch cords - Using RJ 45 connectors ensures solid networks over time and reduces maintenance
Create a multimedia network to your specification Equipment for incoming television - TV coaxial Hertzian and satellite splitter - "F" type connectors - Frequency : 0 - 2400MHz - DIN rail mount with accessory Cat.No 0 739 79 (not provided) - TV coaxial splitter - 2 outputs (attenuation - 4.5 dB) - 3.5 modules

Number of outputs	2
Suitable for remote power supply	No
Width	52.33 mm
Height	53.3 mm
Depth	24.1 mm

3 documents

Select all

Technical Sheet

F01255FR-02.pdf pdf (0.41 Mo)

Instruction Use

LE08958AC.pdf pdf (1.15 Mo)

Technical Sheet

F01255EN-02.pdf pdf (0.41 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0875.pdf pdf (0.08 Mo)
