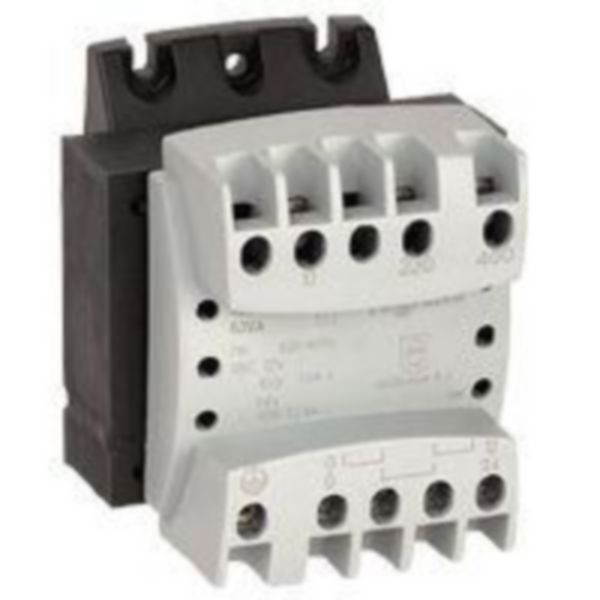

Transformer safety equipment mono - prim 230/400 V/sec 12/24 V - 100 VA
LEGRAND
Transformer safety equipment mono - prim 230/400 V/sec 12/24 V - 100 VA
REF. 042842
EAN.
3245060428426
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Built as safety transformer | Yes |
|---|---|
| Built as isolating transformer | No |
| Built as energy saving transformer | No |
| Primary voltage 1 | 230-230 V |
| Primary voltage 2 | 400-400 V |
| Secondary voltage 1 | 12-12 V |
| Secondary voltage 2 | 24-24 V |
| Rated apparent power | 100 VA |
| Type of insulation material according to IEC 85 | B |
| Short-circuit-proof | No |
|---|---|
| Relative short circuit voltage | 9.4577279505 % |
| Width | 84 mm |
| Height | 86 mm |
| Depth | 98 mm |
| Degree of protection (IP) | IP2X |
| Ring core | No |
| Suitable for mounting on PCB | No |
| Modular version | Yes |
