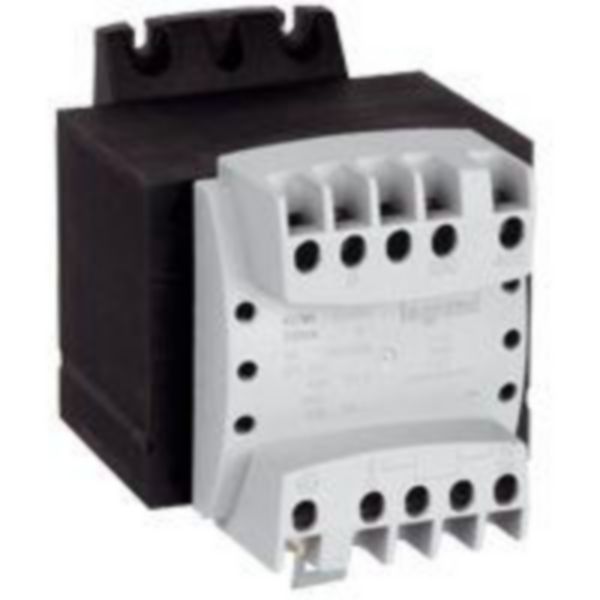

Transformer equipt separates mono circuits - prim 230/400 V/sec 115/230 V - 40 VA

- LEGRAND

Transformer equipt separates mono circuits - prim 230/400 V/sec 115/230 V - 40 VA

REF. 042785 EAN. 3245060427856
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Built as safety transformer No
Built as isolating transformer Yes
Built as energy saving transformer No
Primary voltage 1 230-230 V
Primary voltage 2 400-400 V
Secondary voltage 1 115-115 V
Secondary voltage 2 230-230 V
Rated apparent power 40 VA
Type of insulation material according to IEC 85 B
Short-circuit-proof No
Relative short circuit voltage 14.1512534346 %
Width 84 mm
Height 70 mm
Depth 98 mm
Degree of protection (IP) IP2X
Ring core No
Suitable for mounting on PCB No
Modular version Yes

Documentation

3 documents
Technical Guide
Technical Guide
Technical Guide
4 documents
Catalogue Technical Page
ex223001_0504.pdf pdf (0.04 Mo)
Catalogue Technical Page
ex223001_0499.pdf pdf (0.06 Mo)
Catalogue Commercial Page
ex223001_0495.pdf pdf (0.11 Mo)
Catalogue Technical Page
ex223001_0502-0503.pdf pdf (0.06 Mo)
1 document
PEP
LGRP-2015-038-V1-EN.pdf pdf (0.63 Mo)
