Time-lag switch - 16 A - 230 V~ - 50/60 Hz - 1 mod

LEGRAND

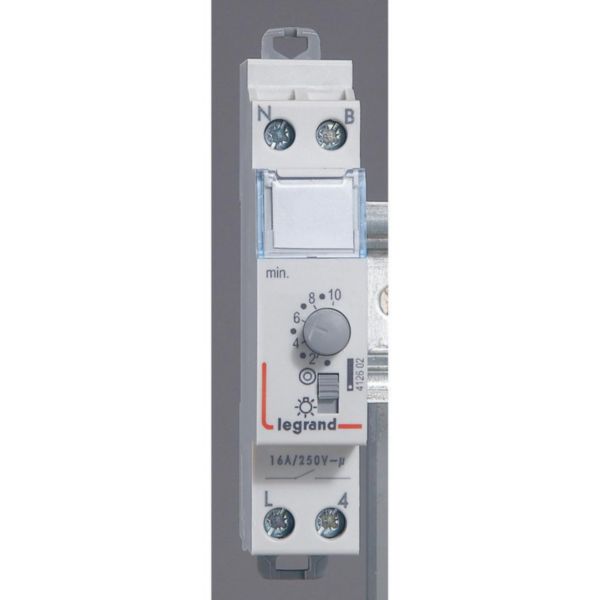

Time-lag switch - 16 A - 230 V~ - 50/60 Hz - 1 mod

REF. 412602 EAN. 3245064126021
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Electronic time - lag switches - Designed for supply busbar compatibility - Power supply : 230 V~ - 50/60 Hz - Switches a lighting circuit for a specific time - Self - protection in the event of blocked pushbutton
  • Time - lag switch - Resettable - 230 V~ - 50/60 Hz - Timing adjustable from 0,5 sec to 10 min - Manual override contact - Output 16 A - 250 V~ - ? cos Ï = 1 - 2000 W incandescent/halogen - 2000 W halogen - 230 V~ - 1000 VA fluo - series compensated - 120 VA fluo - parallel compensated 14 ?F - 100 VA compact fluorescent - 1000 W energy saving lamp automatic 3 - wire or 4 - wire connection - Number of modules : 1

Technical characteristics

Function Electronic
Mounting method DIN rail
Width in number of modular spacings 1
Built-in depth 70 mm
Number of contacts as normally open contact 1
Control voltage 1 (Min-Max) 230-230 V
Type of control voltage 1 AC
Frequency control voltage 1 (Min-Max) 50-60 Hz
Rated switch current 16 A
Max. switching current (cos phi = 0.6) 13 A
Release-delay (Min-Max) 0.5-10 min
Push button glow-lamp current 50 mA
Wiring system 3 and 4 wire configuration
Pre-warning of switching-off None
Current surge function selectable No
Repetitive Repetitive
Supply voltage (Min-Max) 250-250 V
Voltage type (supply voltage) AC
Max. incandescent lamp load 2000 W
Max. load fluorescent lamp 1000 VA
Max. load fluorescent lamp (Duo circuit) 1000 VA
Max. load fluorescent lamp (parallel compensated) 120 VA
Width 17.7 mm
Height 94.8 mm
Depth 74.5 mm
Connection type Screwed terminal

Documentation

1 document
Instruction Use
292552-02.pdf pdf (2.13 Mo)
1 document
Catalogue Commercial Page
ex223001_0106.pdf pdf (0.09 Mo)
1 document
3D Autocad
412602.dwg dwg (0.12 Mo)
2 documents
Agreement
VDE-40013008 (0.28 Mo)
