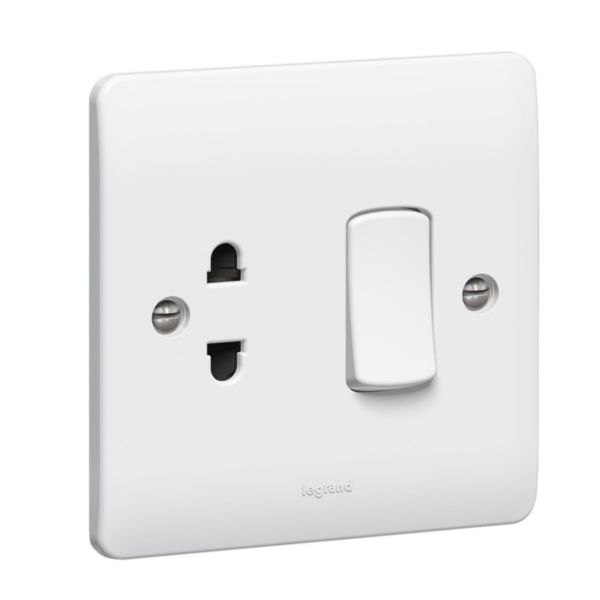

Synergy™ - Socket outlet - Euro-US standard - 1 gang unswitched + 1 way switch - White

Name: Synergy™ - Socket outlet - Euro-US standard - 1 gang unswitched + 1 way switch - White
SKU: 730083

Synergy™ LEGRAND

REF. 730083 EAN. 3245067300831

Compare You can only compare 4 products, you must remove 1 to add this one

Synergy - Euro - US socket outlets and shaver socket - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
Euro - US standard socket outlets 16 A - 250 V~ - For flush-mounting, back box to be min. 25 mm deep - Nominal plate dimensions : 86 x 86 mm - 1 gang - unswitched + 10 AX 1 way switch

Type of switch/push button	Off switch
Type of socket outlet	Other
Number of socket outlets	1
Method of operation	Rocker/button
Mounting direction	Horizontal
Type of fastening	Mounting with screw
With lighting	No
Mounting method	Flush-mounted
Material	Plastic
Material quality	Duroplast
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Colour	White
RAL-number (similar)	9003
Transparent	No
Suitable for degree of protection (IP)	IP2X

Nominal voltage	250 V
Nominal current socket outlet	16 A
Rated current	16 A
Device width	86 mm
Device height	86 mm
Device depth	35 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Built-in depth	23 mm
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-5-40 °C
Voltage type	AC
Antimicrobial treatment	No
Connection type	Screwed terminal
Cable section (Min-Max)	6-6 mm²
