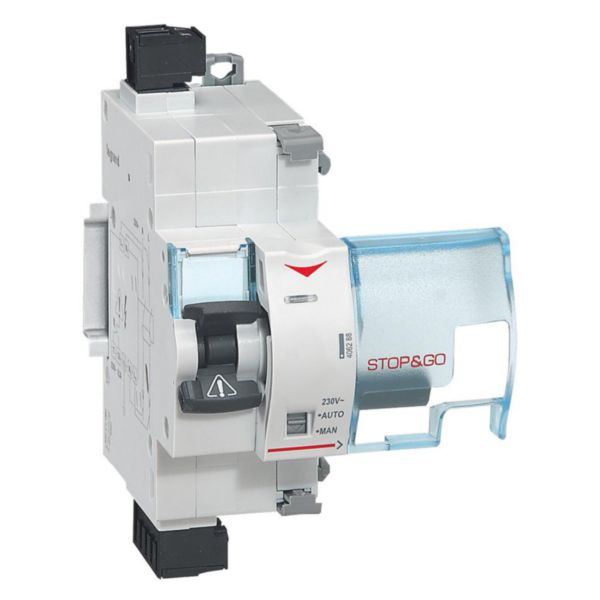

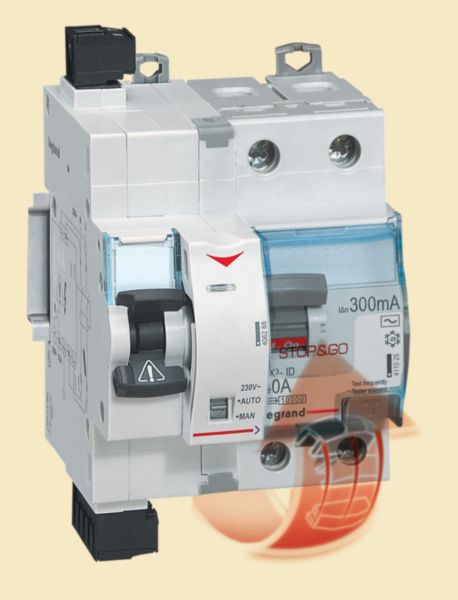

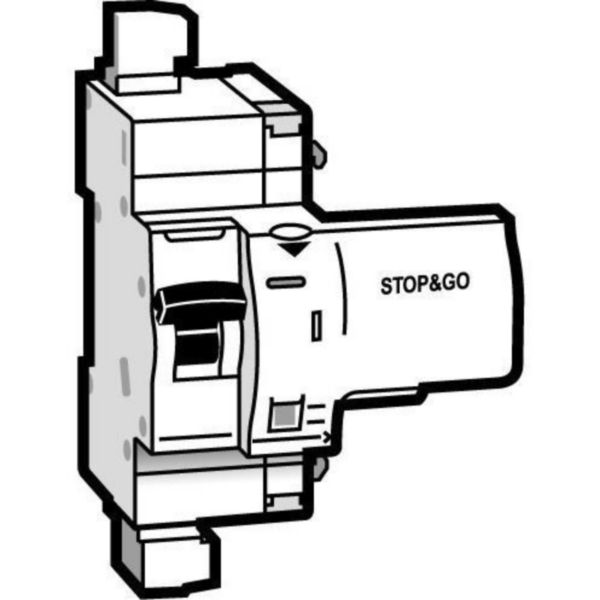

Name: Stop and go automatic resetting for DX³ - 230 V~ - standard - 2 mod.
SKU: 406288

Stop and go automatic resetting for DX³ - 230 V~ - standard - 2 mod.

DX³ LEGRAND

Stop and go automatic resetting for DX³ - 230 V~ - standard - 2 mod.

REF. 406288 EAN. 3245064062886

Compare You can only compare 4 products, you must remove 1 to add this one

The signalling auxiliary must be placed between the STOP&GO and the control auxiliary

Device fitting	Earth leakage switch
Function	Monitoring unit with automatic reclosing
Width in number of modular spacings	2
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	0
Number of fault-signal switches	0
Rated switch current	0.2 A

Rated voltage	230 V
Voltage type	AC
With auto test for earth leakage function	No
Suitable for max. number of poles main contact unit (total)	2
Suitable for max. current main contact unit	63 A
Width	70.9 mm
Height	115 mm
Depth	74.3 mm
