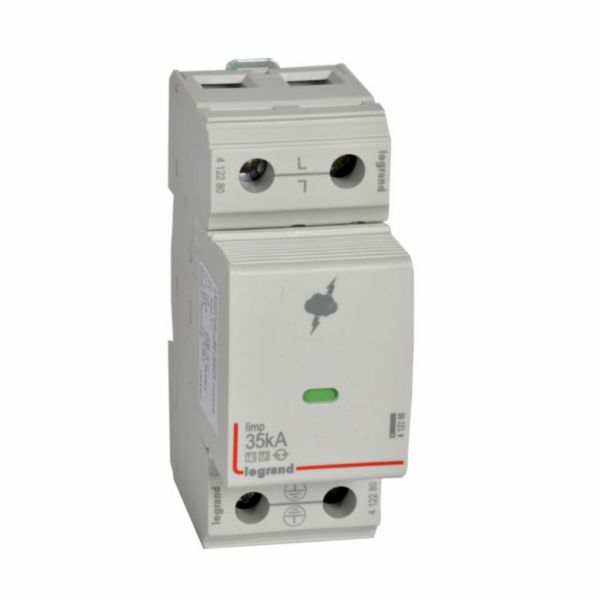

SPD - high risk level installation. - T1+T2 - limp 35 kA/pole - 440 V~(IT) -plug-in -1P
LEGRAND
SPD - high risk level installation. - T1+T2 - limp 35 kA/pole - 440 V~(IT) -plug-in -1P
REF. 412280
EAN.
3414970595027
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| System configuration IT | Yes |
|---|---|
| System configuration TN | No |
| System configuration TN-C | No |
| System configuration TN-C-S | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| Number of conductors (without earthing) | 1 |
| Nominal discharge surge current In (8/20) | 25 kA |
| Nominal voltage AC | 400 V |
| Max. continuous voltage AC | 440 V |
| Voltage protection level | 2.5 kV |
|---|---|
| Integrated backup fuse | No |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Construction size | 2 modular spacing |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 35 mm² |
| With remote signalling contact | Yes |
| Signalling at the device | Optical |
| Category type 2 | No |
| Degree of protection (IP) | IP20 |
