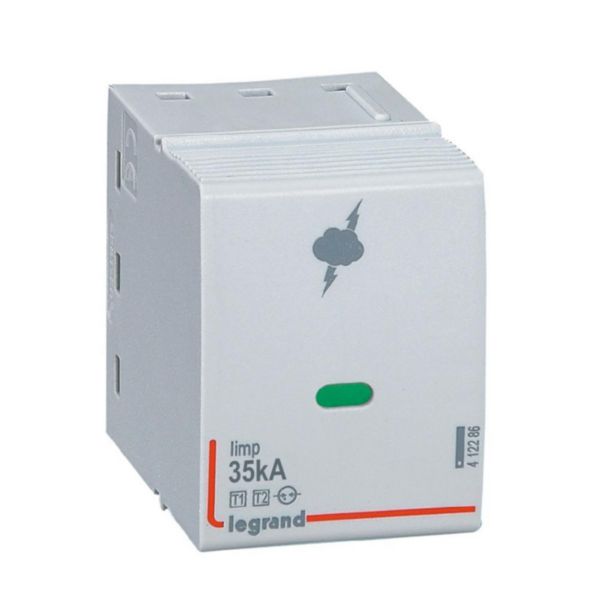

Plug-in replacement modules for SPD - T1+T2 - 35 kA/pole
LEGRAND
Plug-in replacement modules for SPD - T1+T2 - 35 kA/pole
REF. 412286
EAN.
3414970595041
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| System configuration IT | No |
|---|---|
| System configuration TN | Yes |
| System configuration TN-C | Yes |
| System configuration TN-C-S | Yes |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | Yes |
| Nominal discharge surge current In (8/20) | 25 kA |
| Nominal voltage AC | 400 V |
| Max. continuous voltage AC | 440 V |
|---|---|
| Voltage protection level | 2.5 kV |
| Integrated backup fuse | No |
| Construction size | 2 modular spacing |
| With remote signalling contact | No |
| Signalling at the device | Optical |
| Category type 2 | No |
| Degree of protection (IP) | IP20 |
Documentation
1 document
Technical Guide
3 documents
Catalogue Technical Page
Catalogue Technical Page
Catalogue Commercial Page
1 document
Agreement
OC / CB-NL-49811
(0.1 Mo)
