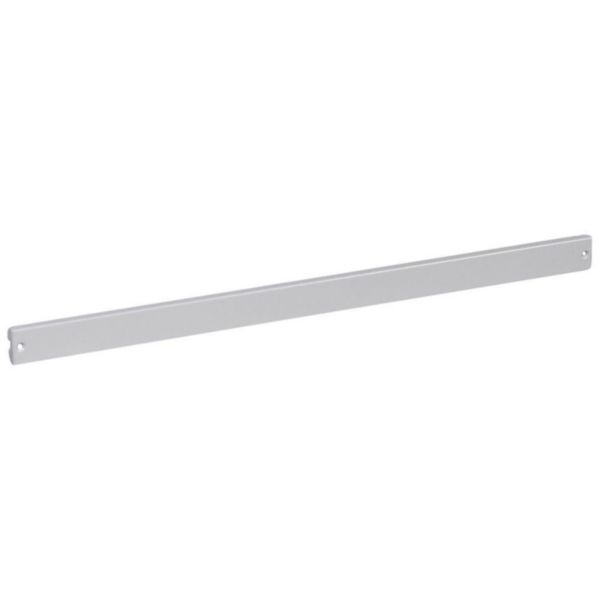

Solid metal faceplate XL³ 800 - captive screws - 36 modules - heigth 50 mm

LEGRAND

Solid metal faceplate XL³ 800 - captive screws - 36 modules - heigth 50 mm

REF. 020990 EAN. 3245060209902
XL³ solid plastron for cabinets is a robust steel faceplate with powder coating for XL³ 800 systems. Captive screws ensure secure, fast mounting of 36 modules. Its 50mm height and 850mm width fit 910mm enclosure widths.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

XL³ solid plastron for cabinets is a robust steel faceplate with powder coating for XL³ 800 systems. Captive screws ensure secure, fast mounting of 36 modules. Its 50mm height and 850mm width fit 910mm enclosure widths.

Product characteristics
  • Solid faceplates and Accessories for XL³ 4000
  • Metal solid faceplates With captive screws - Hinges Cat.No 0 209 59 available as an option - 36 modules - Height : 50 mm

Technical characteristics

Width 850 mm
Height 50 mm
Suitable for enclosure building width 910 mm
Suitable for enclosure building height 1950 mm
Material Steel
Surface finishing Powder coating
degree of impact strength (IK) IK07
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -5-40 °C
Colour Grey
RAL-number 7035
Halogen free Yes
Label space/information surface No

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
3.027
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

1 document
Workshop Book
1 document
Product Environmental Profile (PEP)
LGRP-2011-079-V1-FR.pdf pdf (0.18 Mo)
1 document
Catalogue Commercial Page
ex223001_0394.pdf pdf (0.08 Mo)
6 documents
Agreement
LOVAG-IT 12.073 (0.58 Mo)
Agreement
LOVAG-IT 12.075 (0.58 Mo)
Agreement
LOVAG-IT 12.017 (0.13 Mo)
Agreement
LOVAG-IT 12.067 (0.55 Mo)
Agreement
LOVAG-IT 12.019 (0.59 Mo)
Agreement
LOVAG-IT 12.074 (0.59 Mo)
