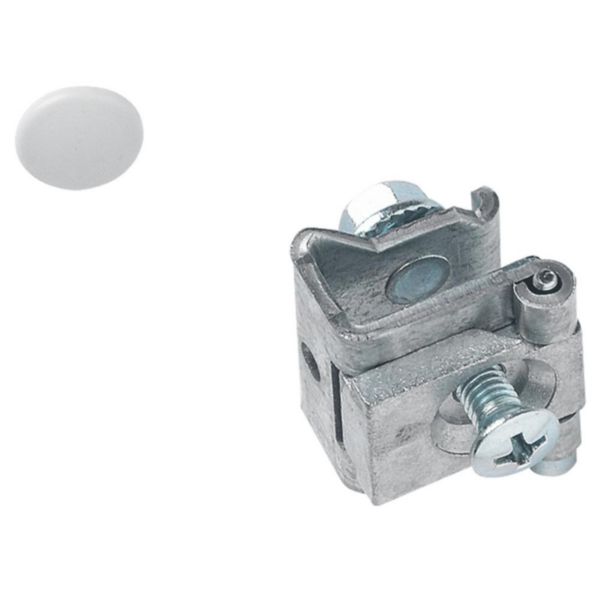

Hinges (2) - XL³ 800/4000 - fit on screw mounting faceplate

LEGRAND

Hinges (2) - XL³ 800/4000 - fit on screw mounting faceplate

REF. 020959 EAN. 3245060209599
XL³ mounting accessory for cabinets and enclosures, this inlying aluminum hinge set for screw-mounted faceplates ensures robust, precise door guidance with a 135° opening angle, zinc-plated corrosion protection, and compatibility.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

XL³ mounting accessory for cabinets and enclosures, this inlying aluminum hinge set for screw-mounted faceplates ensures robust, precise door guidance with a 135° opening angle, zinc-plated corrosion protection, and compatibility.

Product characteristics
  • Solid faceplates and Accessories for XL³ 4000
  • Accessories for faceplates Hinges - 24 modules - Set of 2 - Fit on screw mounting faceplates

Technical characteristics

Inlying hinge Yes
Outlying hinge No
Max. opening angle 135 °
Hinge adjustable No
Material Aluminium
Surface protection Galvanic/electrolytic zinc plated

Documentation

3 documents
Technical Sheet
F03261FR-00.pdf pdf (0.48 Mo)
Instruction Use
E7976A-00.pdf pdf (0.3 Mo)
Workshop Book
1 document
Catalogue Commercial Page
ex223001_0394.pdf pdf (0.08 Mo)
5 documents
Agreement
LOVAG-IT 12.073 (0.58 Mo)
Agreement
LOVAG-IT 12.075 (0.58 Mo)
Agreement
LOVAG-IT 12.017 (0.13 Mo)
Agreement
LOVAG-IT 12.067 (0.55 Mo)
Agreement
LOVAG-IT 12.074 (0.59 Mo)
