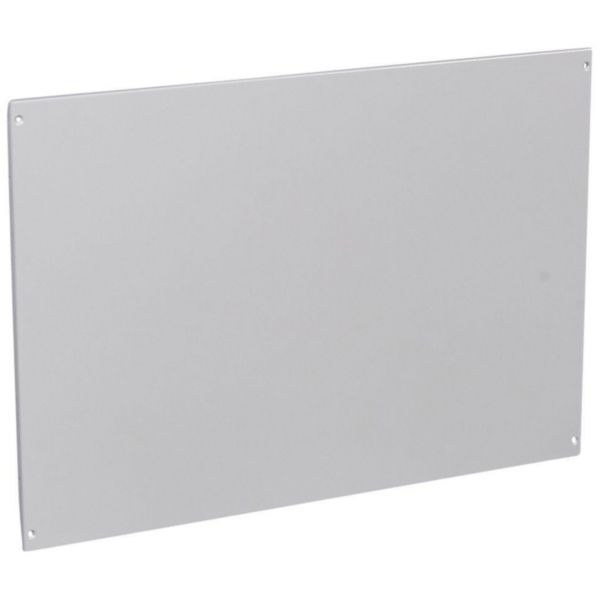

Solid metal faceplate XL³ 800 - captive screws - 36 modules - h 600 mm

LEGRAND

Solid metal faceplate XL³ 800 - captive screws - 36 modules - h 600 mm

REF. 020996 EAN. 3245060209964
XL³ solid plastron for installation in cabinets, this solid metal faceplate for XL³ 800/4000 offers robust steel construction with powder coating and IK07 impact resistance. Captive screws, 36-module capacity, and 600mm height.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

XL³ solid plastron for installation in cabinets, this solid metal faceplate for XL³ 800/4000 offers robust steel construction with powder coating and IK07 impact resistance. Captive screws, 36-module capacity, and 600mm height.

Product characteristics
  • Solid faceplates and Accessories for XL³ 4000
  • Metal solid faceplates With captive screws - Hinges Cat.No 0 209 59 available as an option - 36 modules - Height : 600 mm

Technical characteristics

Width 850 mm
Height 600 mm
Suitable for enclosure building width 910 mm
Suitable for enclosure building height 1950 mm
Material Steel
Surface finishing Powder coating
degree of impact strength (IK) IK07
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -5-40 °C
Colour Grey
RAL-number 7035
Halogen free Yes
Label space/information surface No

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
21.006
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

1 document
Workshop Book
1 document
Product Environmental Profile (PEP)
LGRP-2011-079-V1-FR.pdf pdf (0.18 Mo)
1 document
Catalogue Commercial Page
ex223001_0394.pdf pdf (0.08 Mo)
6 documents
Agreement
LOVAG-IT 12.073 (0.58 Mo)
Agreement
LOVAG-IT 12.075 (0.58 Mo)
Agreement
LOVAG-IT 12.017 (0.13 Mo)
Agreement
LOVAG-IT 12.067 (0.55 Mo)
Agreement
LOVAG-IT 12.019 (0.59 Mo)
Agreement
LOVAG-IT 12.074 (0.59 Mo)
