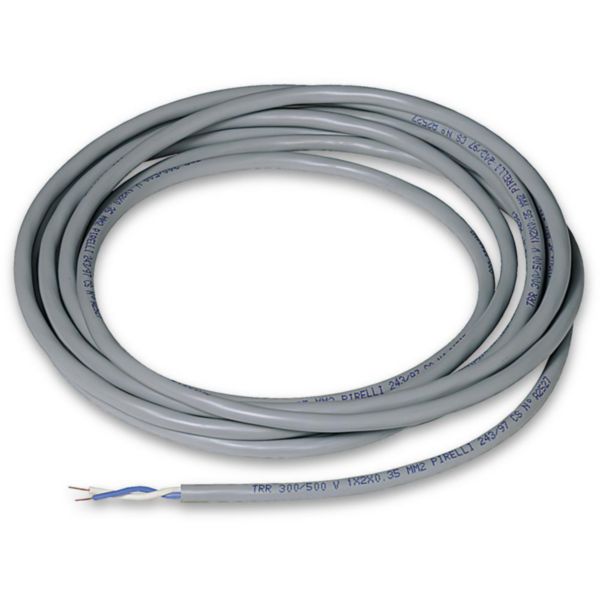

Name: Sheathed pair made up of 2 flexible wires with unshielded plaited sheath.
SKU: L4669

Sheathed pair made up of 2 flexible wires with unshielded plaited sheath.

My Home Up BTICINO

Sheathed pair made up of 2 flexible wires with unshielded plaited sheath.

REF. L4669 EAN. 8012199212777

Compare You can only compare 4 products, you must remove 1 to add this one

Conductor material	Copper
Nominal cross section conductor	0.35 mm²
Diameter conductor	1.95 mm
Conductor category	Class 2 = stranded
Number of cores	12
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
With protective conductor	No
Max. permitted conductor temperature	70 °C
Screen	No
Drain wire	No
Protective barrier	None
Armouring/reinforcement	None

Radial water blocking cable	No
With rodent protection	No
Material outer sheath	Polyvinyl chloride (PVC)
Colour outer sheath	Grey
Cable geometry	Round
Low smoke according to EN IEC 61034-2	No
Reaction-to-fire according to EN 13501-6: Class	Eca
Outer diameter approximate	5.6 mm
Permitted cable outer temperature during assembling/handling (Min-Max)	-15-70 °C
Permitted cable outer temperature after assembling without vibration (Min-Max)	-15-70 °C
Nominal voltage U0	300 V
Nominal voltage U	500 V

2 documents

Select all

Technical Sheet

MQ00289-d-FR.pdf pdf (0.05 Mo)

Technical Sheet

MQ00289-d-EN.pdf pdf (0.05 Mo)

2 documents

Select all

Catalogue Technical Page

ex223001_0646.pdf pdf (0.04 Mo)

Catalogue Commercial Page

ex223001_0649.pdf pdf (0.06 Mo)

2 documents

Select all

PEP

LGRP-00435-V01.01-EN.pdf pdf (1.02 Mo)

Declaration of performance

DOP-DoP BT002 (0.25 Mo)

Sheathed pair made up of 2 flexible wires with unshielded plaited sheath.
