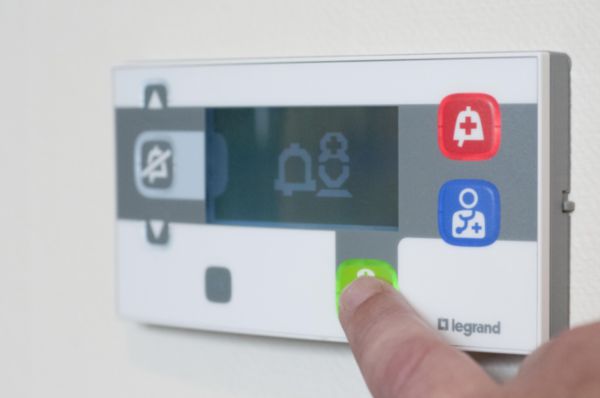

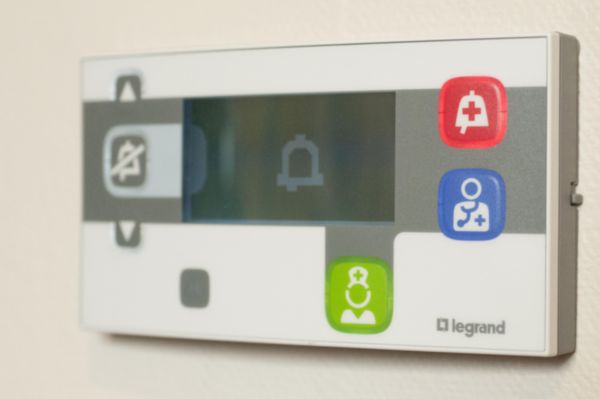

Room terminal with alphanumerical display with pushbuttons for call and presence

Name: Room terminal with alphanumerical display with pushbuttons for call and presence
SKU: 076607

Mosaic LEGRAND

REF. 076607 EAN. 3245060766078

Compare You can only compare 4 products, you must remove 1 to add this one

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No

Other bus systems	Other
Mounting method	Flush-mounted
Width in number of modular spacings	4
With bus connection	Yes
Logic object	Yes

3 documents

Select all

Instruction Use

O1465B.pdf pdf (18.58 Mo)

Technical Guide

LE04498AL_FR.pdf pdf (127.23 Mo)

Technical Guide

LE04498AL_EN.pdf pdf (112.86 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_1210.pdf pdf (0.09 Mo)

1 document

Select all

PEP

LGRP-00587-V02.01-EN.pdf pdf (0.58 Mo)
