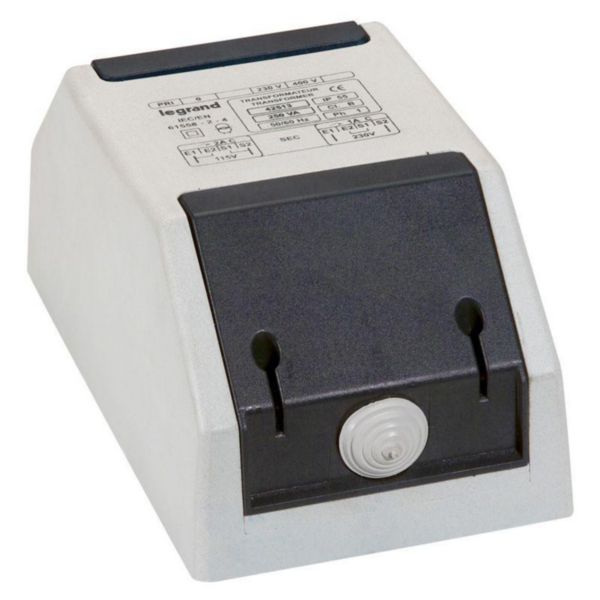

Name: Safety transformer 230 V / 12 V - 100 VA - 2 x 4 mm²
SKU: 042761

Safety transformer 230 V / 12 V - 100 VA - 2 x 4 mm²

LEGRAND

Safety transformer 230 V / 12 V - 100 VA - 2 x 4 mm²

REF. 042761 EAN. 3245060427610

Compare You can only compare 4 products, you must remove 1 to add this one

Transformers and auto-transformers IP 55 - class II - single-phase
Safety transformers - Conform to standard IEC EN 61558 - 2 - 6 - For 63 VA transformers : - Fuse cartridges : 5 x 20 time - delayed - Fuse carrier : Cat.No 0 371 81 - For 100 VA and greater transformers : - Up to 25 A : gG 10 x 38 fuse cartridges and fuse carrier Cat. No. 0 058 08 - From 25 A to 50 A : gG 14 x 51 fuse cartridges and fuse carrier Cat.No 0 215 01 - From 50 A upwards : gG 22 x 58 fuse cartridges and fuse carrier Cat.No 0 216 01 - C curve MCBsInput voltage = 230 V~ Output voltage = 12 V~ - Power : 100 VA - Primary terminal flexible cable : 4 mm² - Secondary terminal flexible cable cross - section : 4 mm²

Built as safety transformer	Yes
Built as isolating transformer	No
Built as energy saving transformer	No
Primary voltage 1	230-230 V
Secondary voltage 1	12-12 V
Rated apparent power	100 VA
Type of insulation material according to IEC 85	B
Short-circuit-proof	No

Relative short circuit voltage	9.7 %
Width	182 mm
Height	92 mm
Depth	112 mm
Degree of protection (IP)	IP55
Ring core	No
Suitable for mounting on PCB	No
Suitable for distribution board	No

1 document

Select all

Technical Guide

PRT219022-GT-transfosBT-BT-022020.pdf pdf (4.27 Mo)

4 documents

Select all

Catalogue Technical Page

ex223001_0500.pdf pdf (0.05 Mo)

Catalogue Technical Page

ex223001_0504.pdf pdf (0.04 Mo)

Catalogue Technical Page

ex223001_0502-0503.pdf pdf (0.06 Mo)

Catalogue Commercial Page

ex223001_0496.pdf pdf (0.06 Mo)

1 document

Select all

3D Autocad

042721.dwg dwg (0.09 Mo)
