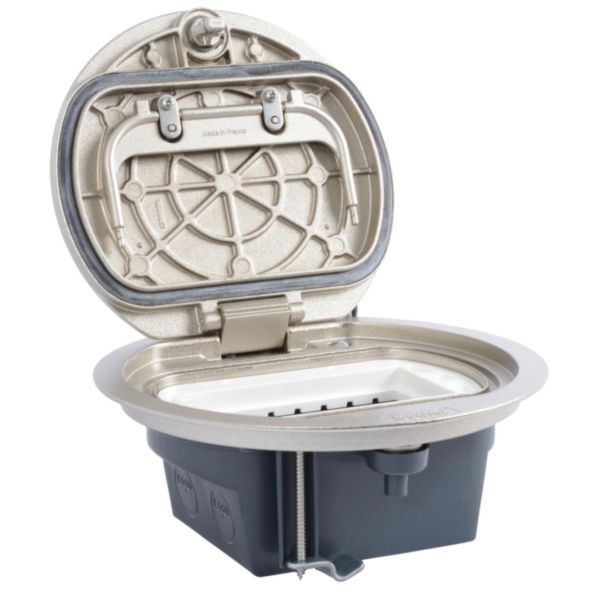

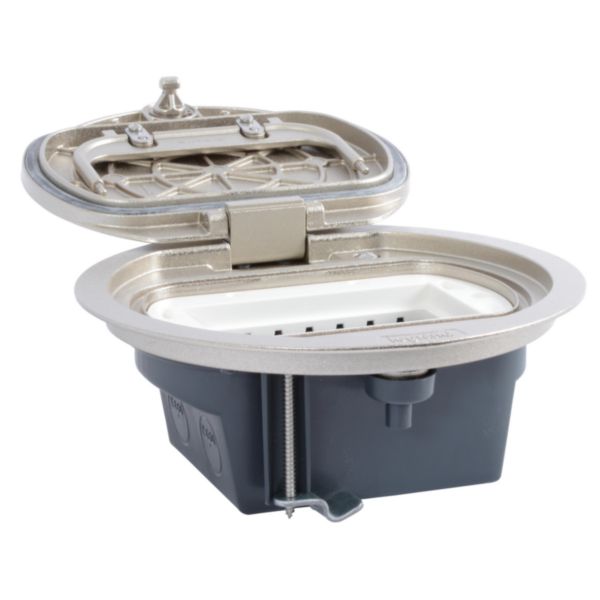

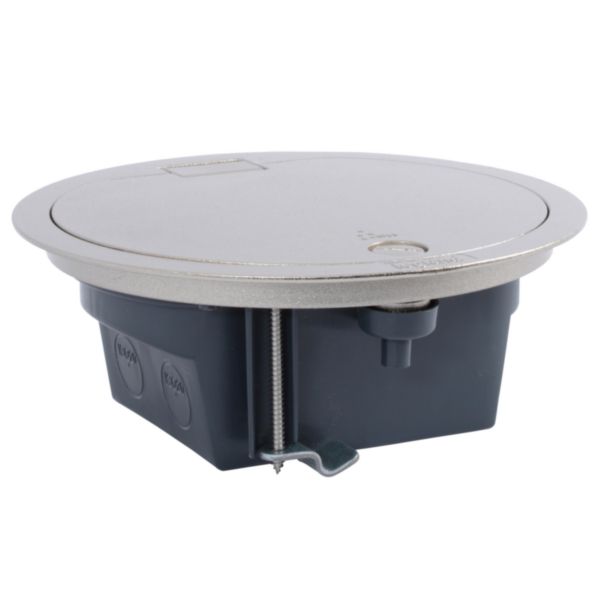

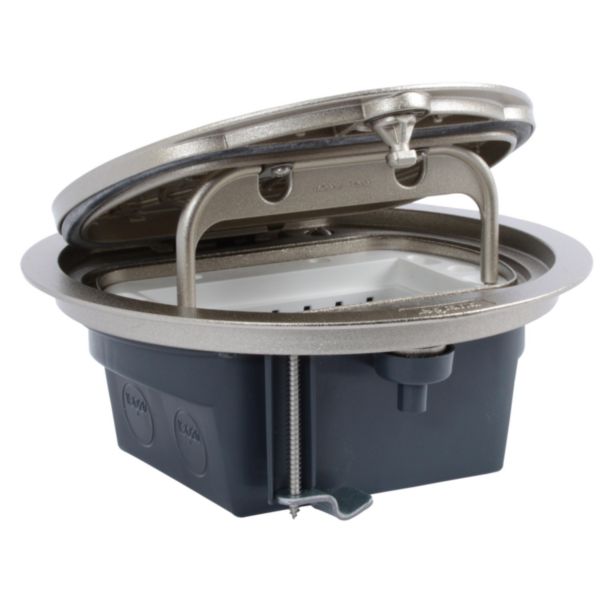

Name: Round waterproof floor box with hinged lid for wiring devices 4 modules. Stainless Steel finish.
SKU: 088064

Round waterproof floor box with hinged lid for wiring devices 4 modules. Stainless Steel finish.

LEGRAND

Round waterproof floor box with hinged lid for wiring devices 4 modules. Stainless Steel finish.

REF. 088064 EAN. 3414970341419

Compare You can only compare 4 products, you must remove 1 to add this one

Sealing class IP66 : completely protected against dust and against jets of water of similar force to heavy seas
Supports a load up to 1 Tonne (closed cover) and resists impacts of energy equivalent to 10 Joules (Protection class IK09) .
Cable entries pre - cut for several pipe diameters (16, 20 and 25mm).
Comply with IEC 60-670-1 et 60-670-23 standards.

Easy and quick installation thanks to four mounting claws using a screwdriver :- For screed floors: with the auto-adjustable backbox cat.no 088069- For technical floors or elevated deck (thickness of tiles from 15mm to 55mm).

Ideal for a frequent use, with a fast 180° opening of the lid which allows to plug and unplug cords easily. Integrates both indoors and outdoors, for public spaces (shopping mall, hotel ...) or residential (terrace, poolside ...).

Secured access: locking with a tool (Ideal in public areas or spaces welcoming children).

Cover model	Round
Number of inlets	1
Number of device cups	1
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)	0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)	0
Number of socket outlets British Standard BS 1363	0
With cable outlet in cover	No
Lockable cover	Yes
Lock control	Other
Housing material	Other
Surface protection housing	Chromium-plated
Material cover	Other
Surface protection cover	Other
Surface treatment cover	Other
Degree of protection (IP) when in use (cable outlet open)	Other
With opening carpeting	No
Depth of flooring recess	0 mm
Protective frame carpeting	Yes

Colour	Other
Suitable for indoor installation	Yes
Suitable for outdoor installation	No
Suitable for subfloor duct	Yes
Suitable for hollow floor	Yes
Suitable for double floor built-in	Yes
Suitable for concrete installation	Yes
Suitable for floors in computer rooms	Yes
Suitable for wet cleaning	No
Outer diameter	170 mm
Built-in diameter	152 mm
Min. built-in depth	65 mm
Depth	70 mm
number of rows	1
degree of impact strength (IK)	IK09
Operating / setting temperature (Min-Max)	-5-60 °C
Halogen free	Yes
Fitted with USB plug	No

Round waterproof floor box with hinged lid for wiring devices 4 modules. Stainless Steel finish.
