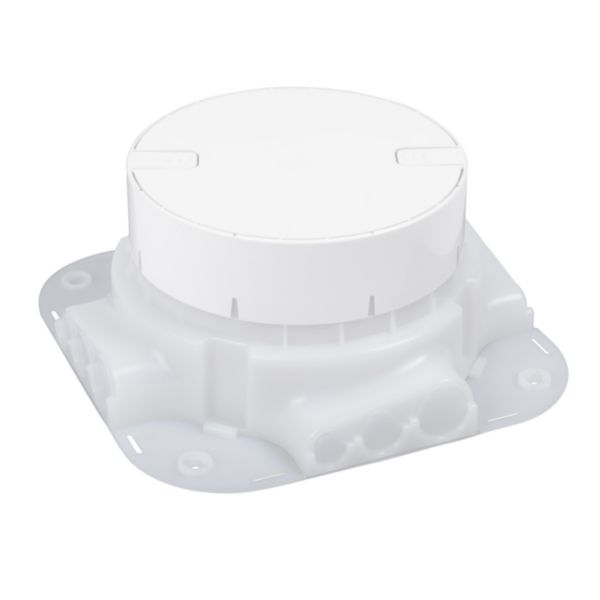

Auto-Adjustable backbox for Round floor boxes IP66/IK09.

Name: Auto-Adjustable backbox for Round floor boxes IP66/IK09.
SKU: 088069

LEGRAND

REF. 088069 EAN. 3414970341433

Compare You can only compare 4 products, you must remove 1 to add this one

Height of screed floor : 65mm to 97mm.
Cable exit pre - cut on all four sides for diameter pipes : 16mm, 20mm and 25mm.
Plastic material
Comply with IEC 60-670-1 et 60-670-23 standards.

Auto-adjustable: saves time because no need to adjust the height of the backbox.

Supplied with a plastic mask insulating from the concrete, during its pouring, and pre-cut to facilitate its extraction once dry concrete.

Nominal dimension	25 mm
Min. height finishing layer	65 mm
Levelling range (Min-Max)	65-97 mm
Suitable for subfloor duct countersunk (closed)	Yes
Suitable for subfloor duct overhead closed	No
Duct height (Min-Max)	16-25 mm
Duct width (Min-Max)	16-25 mm

Built-in opening for floor column	No
Built-in opening for built-in unit	Round
Number of appliances to build in	2
Material side wall	Plastic
Suitable for placing of sealing	No
Decoupling possibility cover from base unit	Yes
Bottom plate	No
