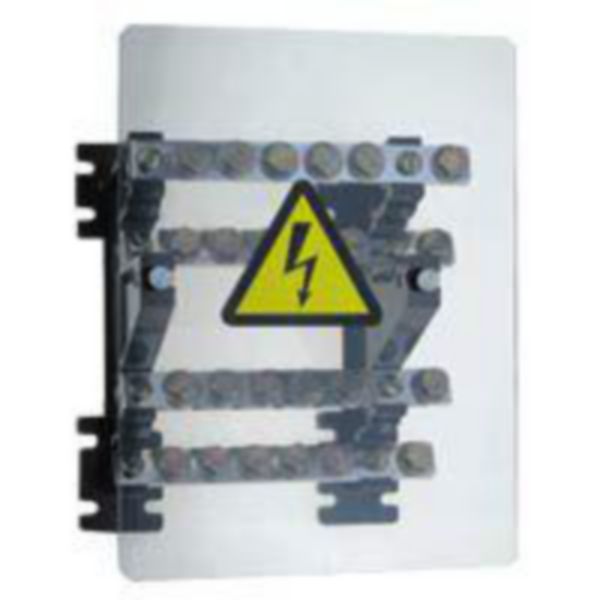

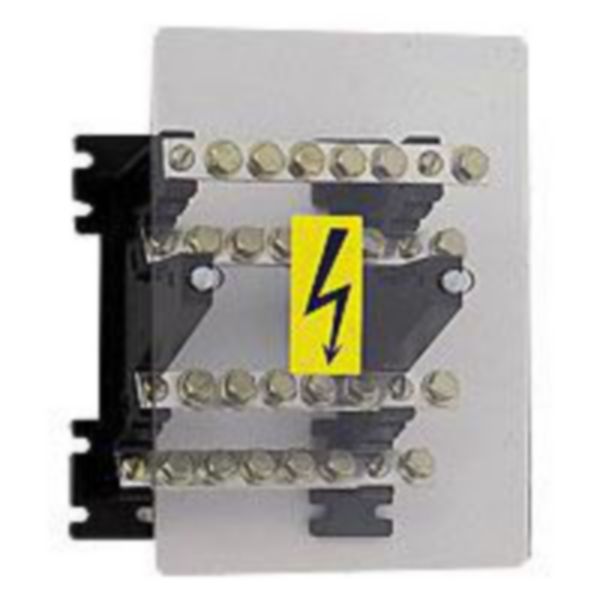

Power distribution block - stepped for lugs - 160 A - 4 bars 18 x 4 mm
LEGRAND
Power distribution block - stepped for lugs - 160 A - 4 bars 18 x 4 mm
REF. 037431
EAN.
3245060374310
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Number of connection clamps | 6 |
|---|---|
| Max. conductor cross section | 70 mm² |
| Length | 180 mm |
| Width | 240 mm |
| Depth | 125 mm |
| Mounting method | Surface mounted |
| Extension possible | No |
| Type of inlet | Cable |
| Material | Plastic |
| Halogen free | Yes |
| Surface protection | Other |
| Colour | Black |
|---|---|
| Degree of protection (IP) | Other |
| With cover | Yes |
| Cover attachment | Screwed |
| With transparent cover | Yes |
| Sealable | No |
| Rated insulation voltage Ui | 1000 V |
| Operating / setting temperature | -5-40 °C |
| Explosion-tested version | No |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
Documentation
1 document
Catalogue Commercial Page
