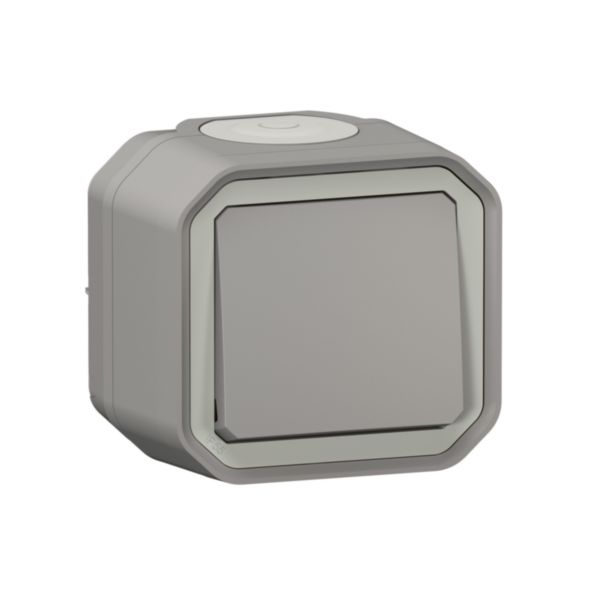

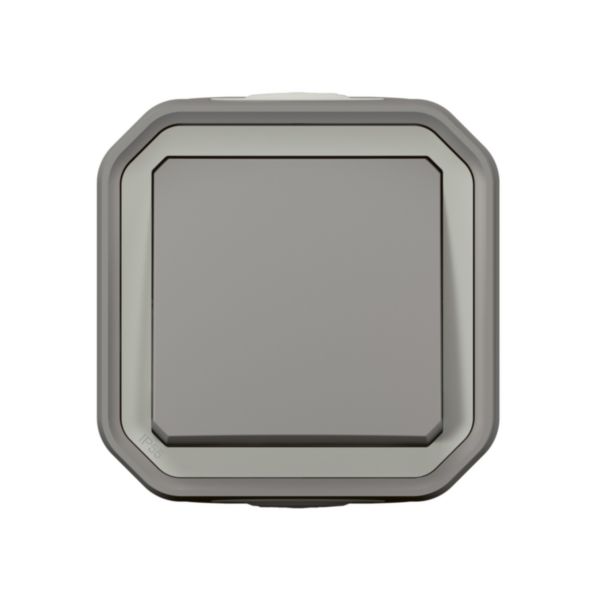

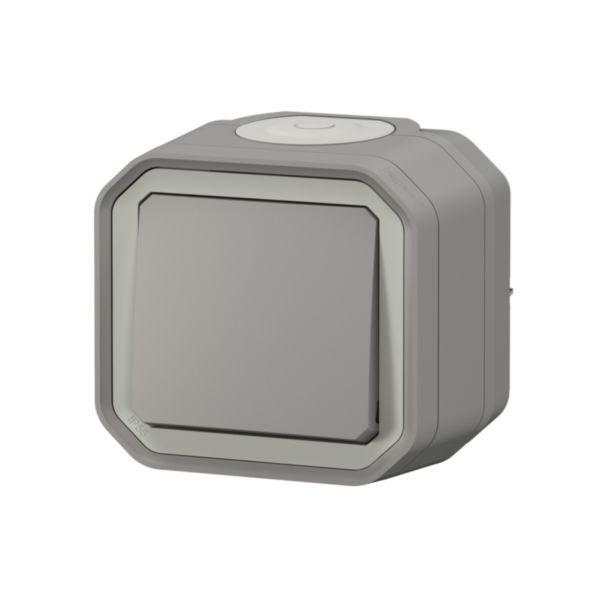

Plexo™ - 1 gang 2-way switch - Grey - surface

Name: Plexo™ - 1 gang 2-way switch - Grey - surface
SKU: 069711L

Plexo™ LEGRAND

REF. 069711L EAN. 3414971881778

Compare You can only compare 4 products, you must remove 1 to add this one

Wiring system	Two-way switch
Method of operation	Rocker/button
Assembly arrangement	Basic element with complete housing
Push button switch	No
Number of rockers	1
Mounting method	Surface mounted
Type of fastening	Screw mounting
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	Grey
RAL-number (similar)	7046
Colour of switch operator	Grey
Label space/information surface	No
Lighting	No
Suitable for degree of protection (IP)	IP55
degree of impact strength (IK)	IK08
Nominal voltage	250 V

Rated current	10 A
Switching current for fluorescent lamps	10 AX
Monitoring contact	No
Connection type	Push-in clamp
Heating switch	No
Washing machine switch	No
Device width	82 mm
Device height	85 mm
Device depth	61 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature	-10-40 °C
Storage temperature	-25-60 °C
Voltage type	AC
Frequency	50-60 Hz
Terminal marking indication	Yes
Terminals capacity	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section	1.5-2.5 mm²
Tube diameter for wall mounted product	16-25 mm
