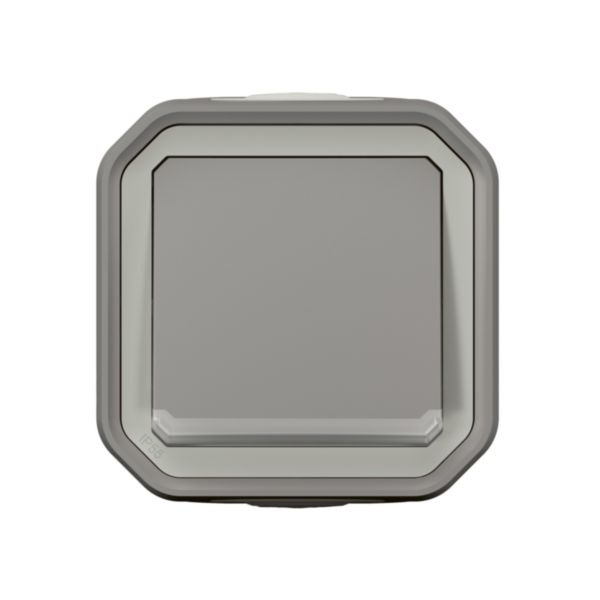

Plexo 1 gang 2-way switch indicator - grey - surface
Plexo™
LEGRAND
Plexo 1 gang 2-way switch indicator - grey - surface
REF. 069712L
EAN.
3414971881808
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Wiring system | Two-way switch |
|---|---|
| Method of operation | Rocker/button |
| Assembly arrangement | Basic element with complete housing |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Surface mounted |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Grey |
| RAL-number (similar) | 7046 |
| Colour of switch operator | Grey |
| Label space/information surface | No |
| Illumination | Yes |
| Function lighting | Illuminated (on) |
| Type of lighting | LED exchangeable |
| Suitable for degree of protection (IP) | IP55 |
| Degree of impact strength (IK) | IK08 |
| Nominal voltage | 250 V |
| Rated current | 10 A |
|---|---|
| Switching current for fluorescent lamps | 10 AX |
| Feedback-signal contact | No |
| Connection type | Push-in clamp |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 82 mm |
| Device height | 85 mm |
| Device depth | 61 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Terminal marking indication | Yes |
| Terminals capacity | 1.5-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1.5-2.5 mm² |
| Tube diameter for wall mounted product | 16-25 mm |
