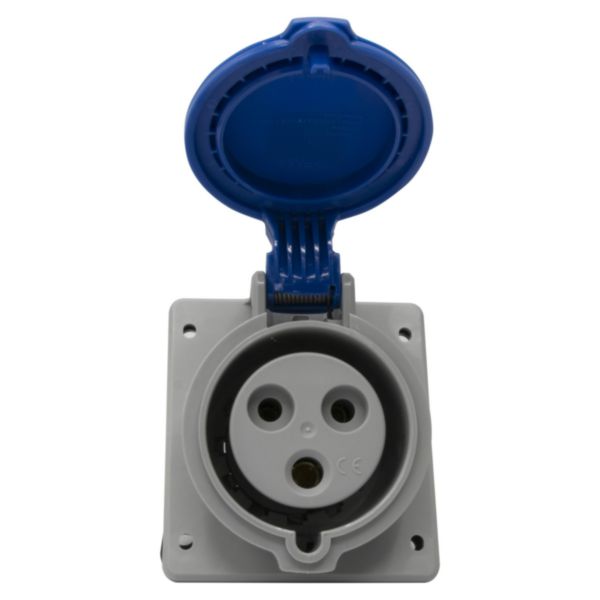

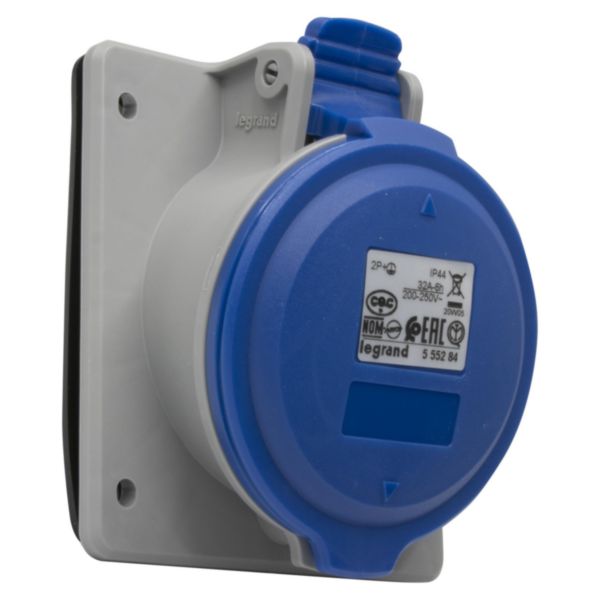

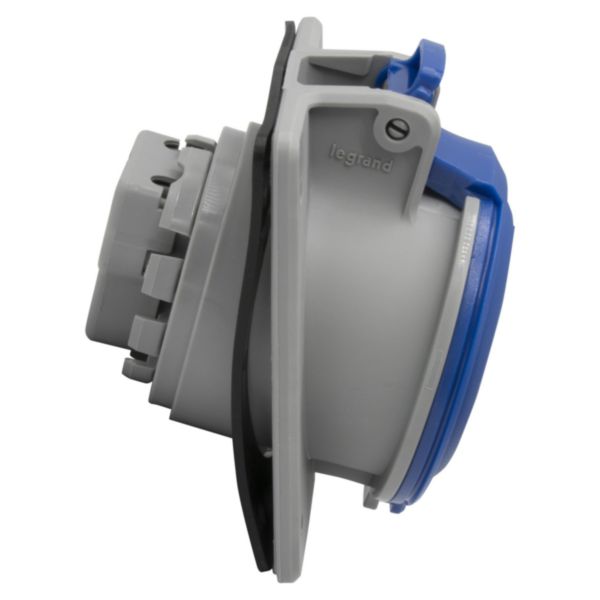

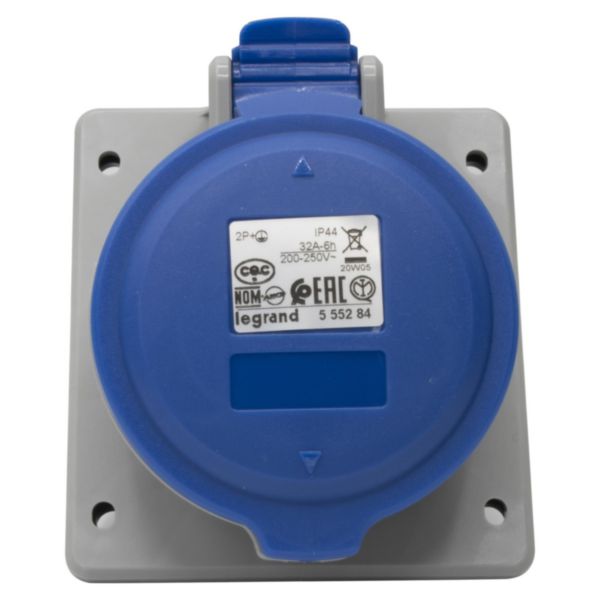

Panel mounting socket P17 - inclined outlet - IP44 - 200/250 V~ - 32 A - 2P+E

P 17 Tempra LEGRAND

Panel mounting socket P17 - inclined outlet - IP44 - 200/250 V~ - 32 A - 2P+E

REF. 555284 EAN. 3245065552843

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Product charateristics

P 17 Tempra Pro IP 44 - LV 16 and 32 A - sockets, plugs, mobile sockets, appliance inlets and interlocked switched sockets Panel mounting sockets inclined outlet - Can be fixed on plain faceplates or pre - drilled and on flush mounting boxes 200/250 V~ - IP 44 32 A - 2P+E

Technical characteristics

IEC-amperage	32 A
Voltage according to EN 60309-2	230 V (50+60 Hz) blue
Number of poles	3
Clock hour position	6 h
Identification colour	Blue
Degree of protection (IP)	IP44

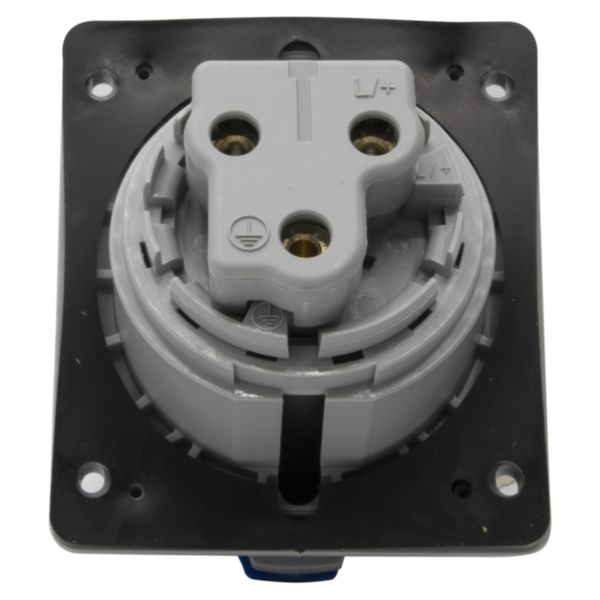

Connection system	Screwed terminal

Insert direction	Straight
Material	Plastic
Military model	No
Flange size vertical	84 mm
Drill hole distance vertical	70 mm
Flange size horizontal	84 mm
Drill hole distance horizontal	70 mm
