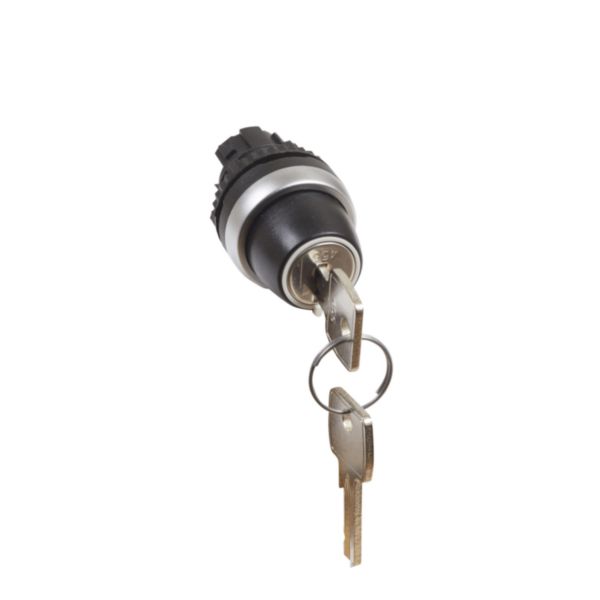

Name: Osmoz non Illuminated key selector switch - 2 stay-put positions (0-12h) 45°
SKU: 023951

Osmoz non Illuminated key selector switch - 2 stay-put positions (0-12h) 45°

Osmoz LEGRAND

Osmoz non Illuminated key selector switch - 2 stay-put positions (0-12h) 45°

REF. 023951 EAN. 3245060239510

Compare You can only compare 4 products, you must remove 1 to add this one

Osmoz control and signalling units : non-illuminated heads - Supplied with a Fixing ring - IP 69, IP 69K - Conform to IEC 60947 - 5 - 1
Selector switches With key - Black button - 2 stay - put positions - 45°

Number of switch positions	2
Type of control element	Key
Suitable for lighting	No
Colour control element	Silver
Colour indicator light cap	Other
Construction type lens	Round
Hole diameter	22.5 mm
Switching function latching	Yes
Spring-return	No

With front ring	Yes
Material front ring	Plastic
Colour front ring	Chrome
Degree of protection (IP), front side	IP66
degree of impact strength (IK)	IK05
Operating / setting temperature	-25-70 °C
Storage temperature	-40-70 °C
Halogen free	Yes

Osmoz non Illuminated key selector switch - 2 stay-put positions (0-12h) 45°
