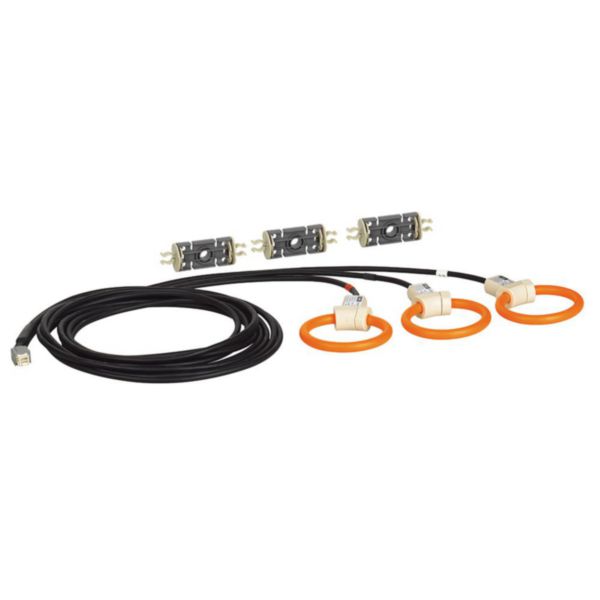

Open Rogowski coil 6300A

Name: Open Rogowski coil 6300A
SKU: 412111

Easy Connect LEGRAND

REF. 412111 EAN. 3414972126236

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Attachable current transformer
Rated primary current	6300 A
With contact protection	Yes
Opening diameter	240 mm
Snap mounting	Yes
Secondary connection	Cable
Number of primary inputs	1

Degree of protection (IP)	IP40
Operating / setting temperature (Min-Max)	-30-80 °C
Storage temperature (Min-Max)	-40-87 °C
Voltage type	AC
Halogen free	Yes
Prewired	Yes

1 document

Select all

Instruction Use

LE04940AB.pdf pdf (1.98 Mo)

3 documents

Select all

Catalogue Commercial Page

ex223001_0119.pdf pdf (0.08 Mo)

Catalogue Technical Page

ex223001_0122.pdf pdf (0.18 Mo)

Catalogue Technical Page

ex223001_0121.pdf pdf (0.08 Mo)
