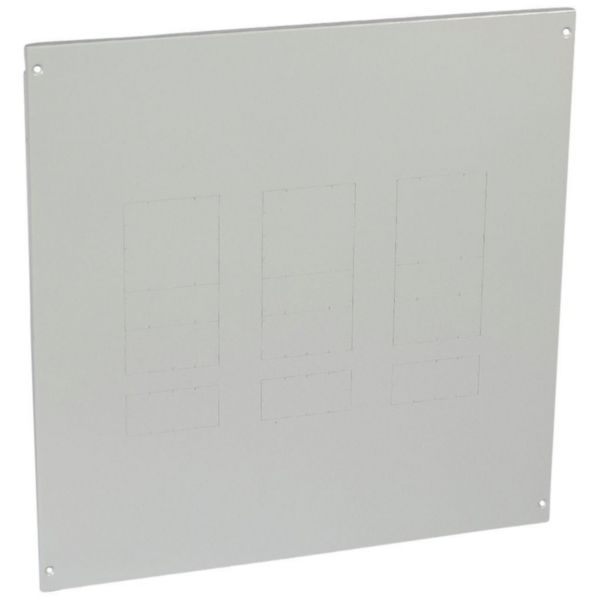

Metal faceplate XL³ 800/4000 - for DPX 630 vertical - captive screws - 24 modules

LEGRAND

Metal faceplate XL³ 800/4000 - for DPX 630 vertical - captive screws - 24 modules

REF. 020922 EAN. 3245060209223
XL³, plastron for mounting switching and protection devices in enclosures, is a robust metal faceplate for 1 to 3 DPX³ 630 in vertical position with 24 modules and steel, powder-coated construction for XL³ 800/4000 cabinets.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

XL³, plastron for mounting switching and protection devices in enclosures, is a robust metal faceplate for 1 to 3 DPX³ 630 in vertical position with 24 modules and steel, powder-coated construction for XL³ 800/4000 cabinets.

Product characteristics
  • Equipment for XL³ 4000 - for mounting on adjustable plates : DPX³ 630 fixed version - Adjustable plates are used for front terminal/rear terminal connection and mounting of motor - driven or rotary handles
  • Metal faceplates for devices In =ertical position For 1 to 3 DPX³ 630 with downstream elcbs - 24 modules - Hinges Cat.No 0 209 59 available as an option - With captive screws

Technical characteristics

Width 600 mm
Height 600 mm
Suitable for enclosure building width 725 mm
Suitable for enclosure building height 2200 mm
Material Steel
Surface finishing Powder coating
degree of impact strength (IK) IK07
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -5-40 °C
Colour Grey
RAL-number 7035
Halogen free Yes
Label space/information surface No

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
17.462
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

2 documents
Workshop Book
Instruction Use
LE05187AA.pdf pdf (0.42 Mo)
1 document
Product Environmental Profile (PEP)
LGRP-2011-079-V1-FR.pdf pdf (0.18 Mo)
3 documents
Catalogue Commercial Page
ex223001_0386.pdf pdf (0.1 Mo)
Catalogue Commercial Page
ex223001_0388.pdf pdf (0.07 Mo)
Catalogue Technical Page
ex223001_0390.pdf pdf (0.44 Mo)
6 documents
Agreement
LOVAG-IT 12.073 (0.58 Mo)
Agreement
LOVAG-IT 12.017 (0.13 Mo)
Agreement
LOVAG-IT 12.067 (0.55 Mo)
Agreement
LOVAG-IT 12.019 (0.59 Mo)
Agreement
LOVAG-IT 12.075 (0.58 Mo)
Agreement
LOVAG-IT 12.074 (0.59 Mo)
