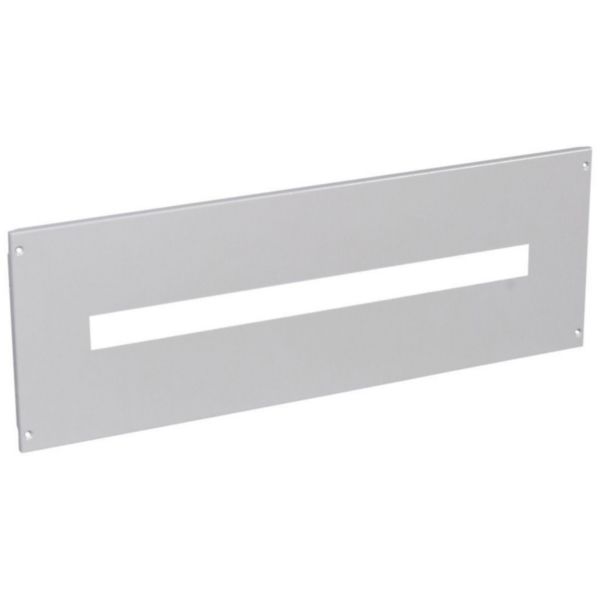

Metal faceplate XL³ 800/4000 - DPX³/DPX-IS - captive screws - 36 modules

LEGRAND

Metal faceplate XL³ 800/4000 - DPX³/DPX-IS - captive screws - 36 modules

REF. 020960 EAN. 3245060209605
XL³ metal faceplate for mounting switching and protection devices in enclosures, optimized for DPX³/DPX-IS in XL³ 800/4000. It offers 36 modules, captive screws, and optional hinges. Steel, powder-coated IK07, halogen-free construction.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

XL³ metal faceplate for mounting switching and protection devices in enclosures, optimized for DPX³/DPX-IS in XL³ 800/4000. It offers 36 modules, captive screws, and optional hinges. Steel, powder-coated IK07, halogen-free construction.

Product characteristics
  • Equipment for XL³ 4000 - for mounting on adjustable plate : DPX³ 160, DPX³ 250 fixed version
  • Metal faceplates for devices In =ertical position For DPX³ with or without motor driven handle - 36 modules - Hinges Cat.No 0 209 59 available as an option - With captive screws

Technical characteristics

Width 850 mm
Height 300 mm
Suitable for enclosure building width 910 mm
Suitable for enclosure building height 1950 mm
Material Steel
Surface finishing Powder coating
degree of impact strength (IK) IK07
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -5-40 °C
Colour Grey
RAL-number 7035
Halogen free Yes
Label space/information surface No

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
11.536
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

2 documents
Workshop Book
Instruction Use
LE05187AA.pdf pdf (0.42 Mo)
1 document
Product Environmental Profile (PEP)
LGRP-2011-079-V1-FR.pdf pdf (0.18 Mo)
3 documents
Catalogue Commercial Page
ex223001_0387.pdf pdf (0.06 Mo)
Catalogue Commercial Page
ex223001_0384.pdf pdf (0.22 Mo)
Catalogue Commercial Page
ex223001_0385.pdf pdf (0.12 Mo)
6 documents
Agreement
LOVAG-IT 12.073 (0.58 Mo)
Agreement
LOVAG-IT 12.017 (0.13 Mo)
Agreement
LOVAG-IT 12.067 (0.55 Mo)
Agreement
LOVAG-IT 12.019 (0.59 Mo)
Agreement
LOVAG-IT 12.075 (0.58 Mo)
Agreement
LOVAG-IT 12.074 (0.59 Mo)
