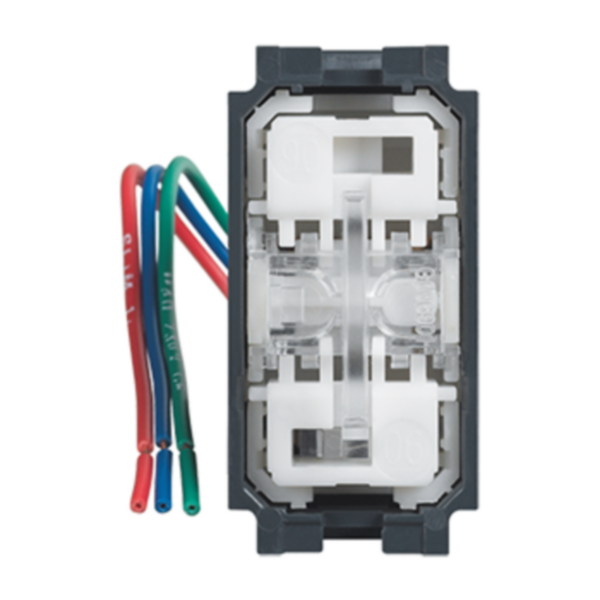

Living Now- Hotel dual key changeover switch, 10A, 1 module

Living Now BTICINO

Living Now- Hotel dual key changeover switch, 10A, 1 module

REF. BT-K4027H EAN. 8005543610534
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Fully Flat mechanism to follow the aesthetics of the L. Now light point
  • The device must be completed with the type 06H cover
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • 10 AX, 250 Va.c. 1 P (NO)1 module
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • To be assembled with the K4373 outside lamp holder. Replaceable LED (K4373V230RG).
Usage
  • The device has three command modes:1. green side: green light outside the door and on the central key of the command; indicates the need to tidy up.2. red side: red light outside the door and on the central key of the command; be sure not to disturb.3. central protruding button: reset of the command; any light is turned off.
Avantages
  • Three controls at the touch of a button while maintaining the full touch ergonomics of the range
  • The strength of design lies in the essentiality of the form obtainedfrom the search for an absolute flatness between the elements of the switch.
  • LED on board replaceable

Technical characteristics

Assembly arrangement Basic element
Model 1-pole switch
Number of poles 1
Method of operation Other
Mechanical controllable Yes
Electronic controllable No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Type of fastening Engage (snap)
Connection type Screwed terminal
Colour Black
RAL-number (similar) 7015
Transparent No
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 1
Device width 22 mm
Device height 45 mm
Device depth 39 mm
Built-in depth 29 mm
Min. depth of built-in installation box 39 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Type of lighting LED exchangeable
Terminal marking indication No
Antimicrobial treatment No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²

Documentation

2 documents
Instruction Use
LE10247AB.pdf pdf (0.78 Mo)
Technical Sheet
IDP000273_02-EN.pdf pdf (0.25 Mo)
2 documents
Catalogue Commercial Page
ex223001_0775.pdf pdf (0.09 Mo)
Brochure
2 documents
BIM Data
BIM Data
