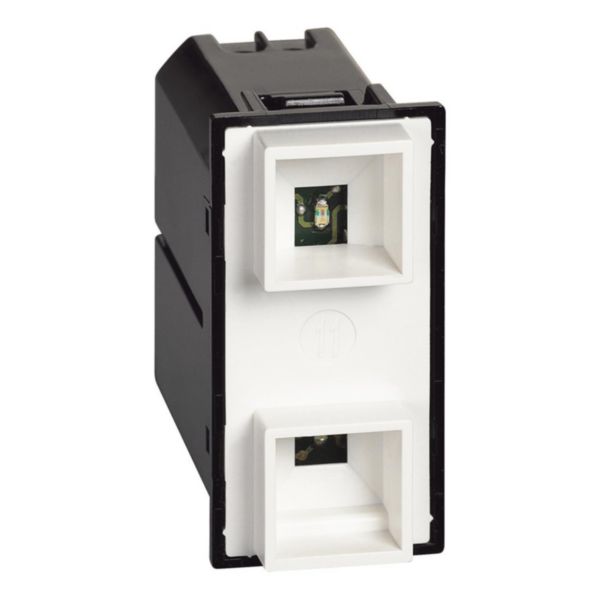

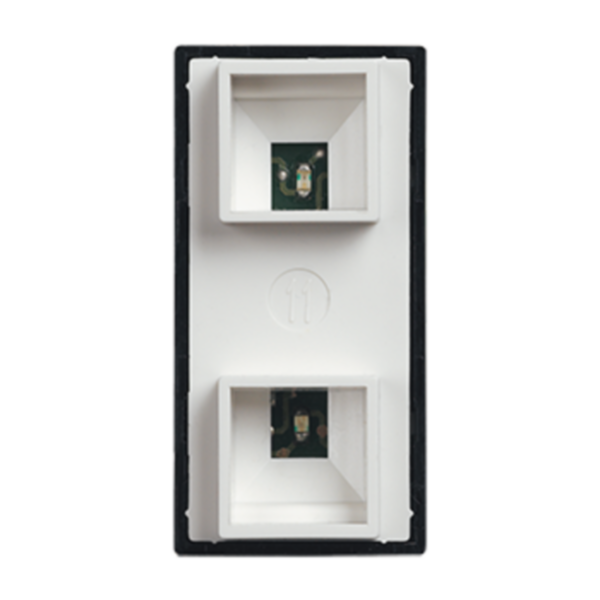

Living Now - red / green signal lamp holder, 1 module

Living Now BTICINO

Living Now - red / green signal lamp holder, 1 module

REF. BT-K4373 EAN. 8005543618554
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Allows light signaling outside the room door (DND MUR)
  • The device must be completed with the 11H type cover
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • Power supply 127/230 Va.c. - 1 module
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • Installation to be coordinated with the commutator inside the hotel room K 4027H
Usage
  • Once activated,the switch inside the room, this device indicates if the service must not disturb (DND) or is required to make up the room (MUR)
Avantages
  • It is coordinated with the L.NOW aesthetic
  • LED on board

Technical characteristics

Assembly arrangement Basic element
Number of modules (module system) 1
Lamp holder None
With light source Yes
Lamp type LED not exchangeable
With flashlight No
With fixed symbol/imprint No
With exchangeable symbol No
Application as button No
Mounting method Flush-mounted
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Colour Black
RAL-number (similar) 7015
Transparent No
Colour light source Red/green
Suitable for degree of protection (IP) IP40
Nominal voltage 230 V
Max. lamp power 5 W
Device width 22 mm
Device height 45 mm
Device depth 41.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 34 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
Terminal marking indication No
Antimicrobial treatment No
Connection type Screwed terminal
Cable nature for connection Flexible
Cable section (Min-Max) 1.5-2.5 mm²
Label space/information surface No
