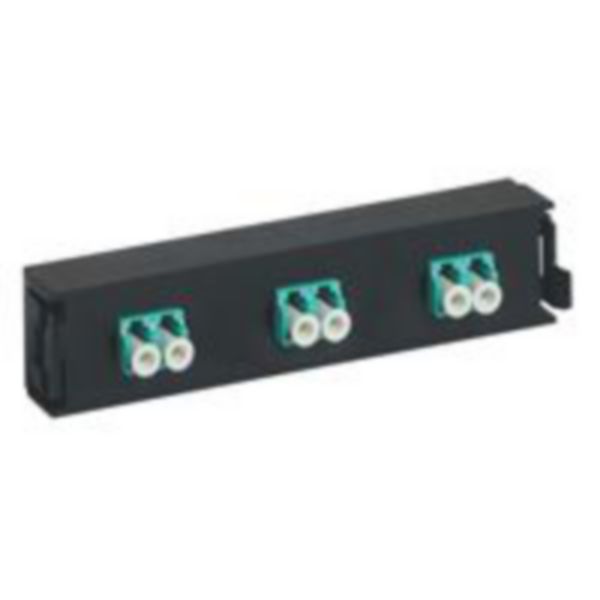

LC duplex block for 6 multimode fibres - aqua

Name: LC duplex block for 6 multimode fibres - aqua
SKU: 032136

LCS³ LEGRAND

REF. 032136 EAN. 3414971400290

This block with LC duplex adapters for 6 multimode fibres fits directly onto fibre optic modular drawers and splice cassette.

Compare You can only compare 4 products, you must remove 1 to add this one

This block with LC duplex adapters for 6 multimode fibres fits directly onto fibre optic modular drawers and splice cassette.

Scalability and modularity: easy one-hand move, add and change of blocks among a large choice (LC, LC APC, SC, SC APC, ST, MTP)

Suitable for number of couplings/adaptors	6
With number of couplings/adaptors	6
With front plate	No
With housing	Yes
With pigtails	No
Fibre type	Multi mode 50/125
APC-version	No
Type of connector external	LC-Duplex
Type of connector interior	LC-Duplex
Colour	Black
RAL-number	9017

Mounting method	Other
Height	23 mm
Width	108.8 mm
Depth	38.4 mm
Operating / setting temperature (Min-Max)	-10-60 °C
Storage temperature (Min-Max)	-10-60 °C
Terminal marking indication	No
Prewired	No
Label space/information surface	No
Fitted with door or cover	No
Cable support	Not applicable
