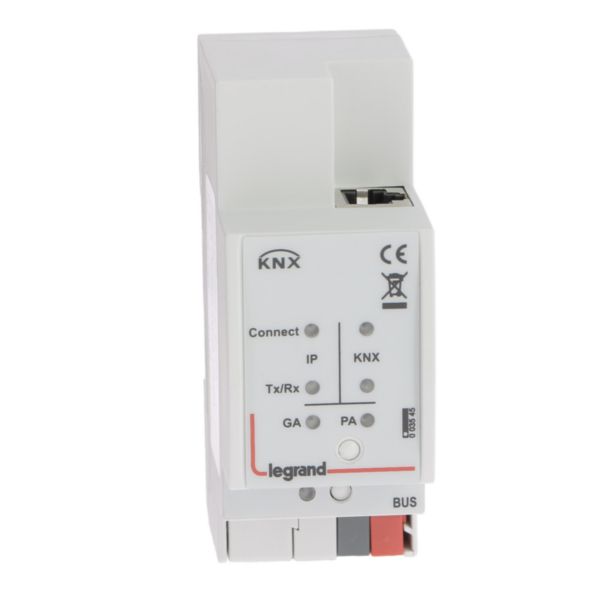

Name: KNX router IP din
SKU: 003545

KNX router IP din

LEGRAND

KNX router IP din

REF. 003545 EAN. 3414972052412

Compare You can only compare 4 products, you must remove 1 to add this one

Connected with the BUS/KNX cable & IP address assignment manually or by DHCP server

Simultaneous connection to two different KNX systems and transmission of telegrams between the local network and different buses

Because a broad range of KNX devices communicate with each other, (even if they are from different manufacturer) KNX technology answers to high demands for smart home or building thanks to endless flexibility and personalization
Option to block or allow telegrams between KNX and IP regarding configured filter table

Bus system KNX	Yes
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	None
Radio frequency bidirectional	No
Model	Ethernet interface
Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	2
Demounting protection	No
With LED indication	Yes
Updateable	No
Operating voltage (Min-Max)	29-29 V
Voltage type	DC
Protocol	TCP/IP
Provider dependent	No
Visualization	Yes
Web-Server	No
Radio interface	No

IR interface	No
Degree of protection (IP)	IP20
Width	35 mm
Height	90 mm
Depth	68 mm
degree of impact strength (IK)	IK06
Operating / setting temperature (Min-Max)	-5-45 °C
Storage temperature (Min-Max)	-20-60 °C
Terminal marking indication	Yes
Type of load	Not applicable
Halogen free	Yes
Connection type	Push-in clamp , Cable
Number of distribution blocks	0
Terminals capacity (Min-Max)	0.6-0.8 mm²
Label space/information surface	No
Fitted with USB plug	No
Contains Batteries and/or Accumulator	No
Addressable	Yes
Connected object	No
