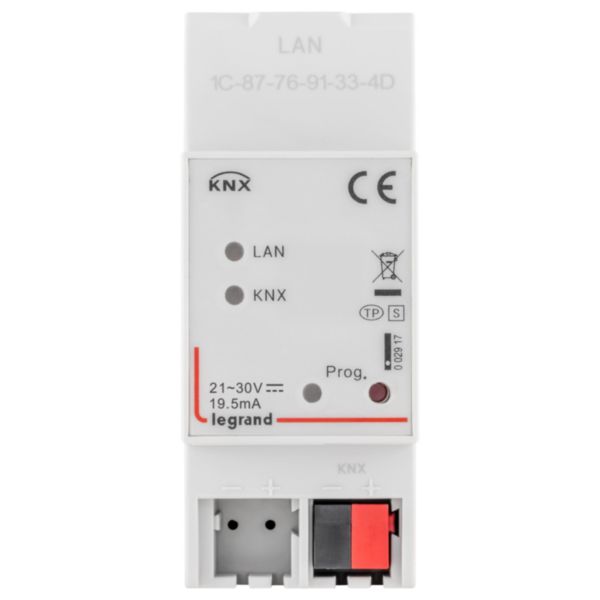

Name: KNX-IP router
SKU: 002917

can act as main line or backbone coupler. Links a diffent KNX network to each other via the IP infrastructure

Compare You can only compare 4 products, you must remove 1 to add this one

can act as main line or backbone coupler. Links a diffent KNX network to each other via the IP infrastructure

Standby consumption	19.5
Bus system KNX	Yes
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	None
Radio frequency bidirectional	No
Model	Interface KNX Powernet
Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	36
Demounting protection	Yes
With LED indication	Yes
Updateable	Yes
Operating voltage (Min-Max)	21-30 V
Voltage type	DC
Protocol	TCP/IP
Provider dependent	Yes
Visualization	Yes
Web-Server	No

Radio interface	No
IR interface	No
Degree of protection (IP)	IP20
Width	36 mm
Height	64.1 mm
Depth	90 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-45 °C
Storage temperature (Min-Max)	-25-55 °C
Supply current (Min-Max)	0.0155-0.0195 A
Terminal marking indication	Yes
Type of load	Not applicable
Halogen free	Yes
Connection type	Other
Label space/information surface	No
Fitted with USB plug	No
Contains Batteries and/or Accumulator	No
Addressable	Yes
Connected object	No
