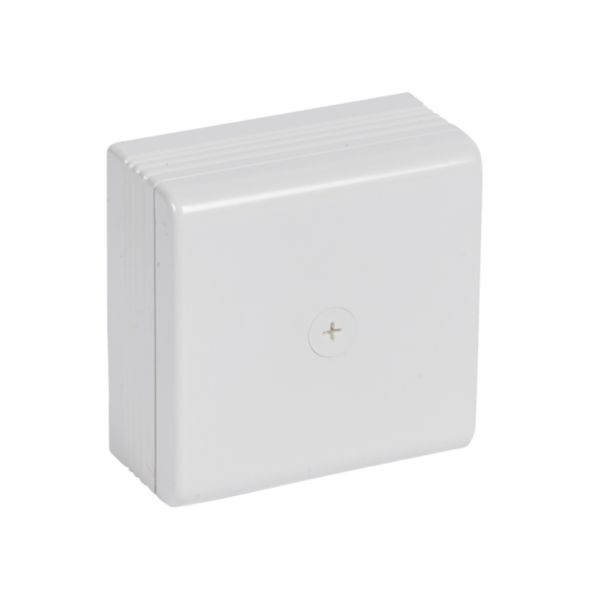

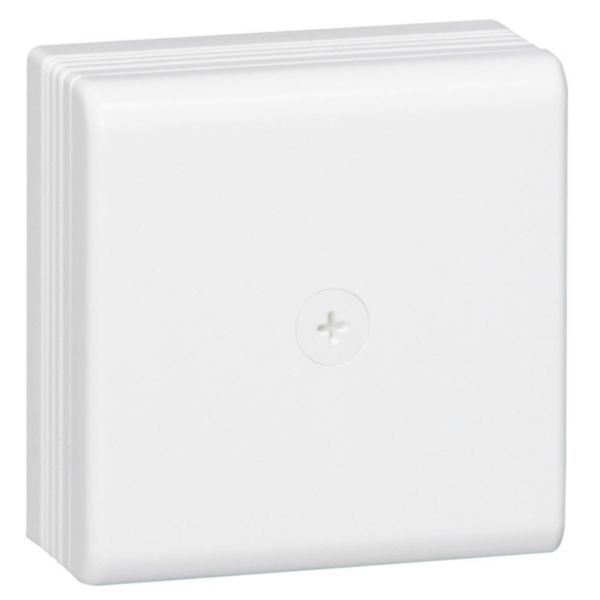

Junction box for DLPlus mini-trunking 75x75x35mm

DLPlus LEGRAND

Junction box for DLPlus mini-trunking 75x75x35mm

REF. 030316 EAN. 3245060303167
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Dimensions : 75x75x35mm
  • Respect the protection index
  • Colour : white

The product's benefits

Installation
  • Fixing grid inside the box (use screws). Frame precut in height and width corresponding to the heights and widths of the mini-trunking
Usage
  • Allows derivations on the 4 sides of the box: center, left or right, or angle

Technical characteristics

Length 75 mm
Width 75 mm
Depth 35 mm
Material Plastic
Colour White
RAL-number 9003
Halogen free Yes
Degree of protection (IP) Other
degree of impact strength (IK) Other
Operating / setting temperature -5-60 °C
Storage temperature -25-60 °C
Label space/information surface No
Fitted with door or cover No
Mounting method Surface mounted
