DLPlus Mini-Trunking 2 compartments with a central separation partition, 32x12,5mm. White
DLPlus
LEGRAND
DLPlus Mini-Trunking 2 compartments with a central separation partition, 32x12,5mm. White
REF. 030014
EAN.
3245060300142
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics

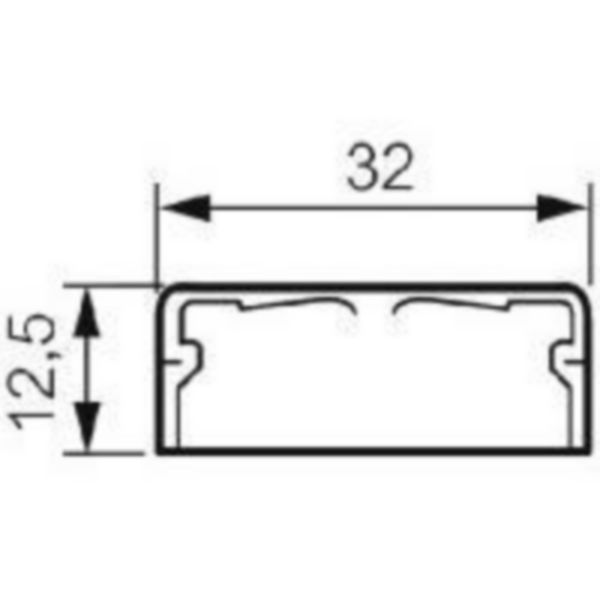

| Height | 12.5 mm |
|---|---|
| Width | 32 mm |
| Length | 2100 mm |
| Usable cross section | 240 mm² |
| Material | Plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | No |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Suitable for circuit integrity | No |
| Colour | White |
| Transparent | No |
| RAL-number | 9003 |
| Number of permanent partitions | 1 |
|---|---|
| Number of plug-in partitions | 0 |
| Type of fastening | Bottom perforation |
| Cover model | Loose |
| With cable fixing clip | Yes |
| With protective foil | No |
| With duct connector | No |
| Delivery on roll | No |
| Degree of protection (IP) | IP40 |
| degree of impact strength (IK) | IK07 |
| Operating / setting temperature | -5-60 °C |
| Storage temperature | -25-60 °C |
Documentation
2 documents
Technical Sheet
Technical Sheet
2 documents
Catalogue Commercial Page
Catalogue Technical Page
