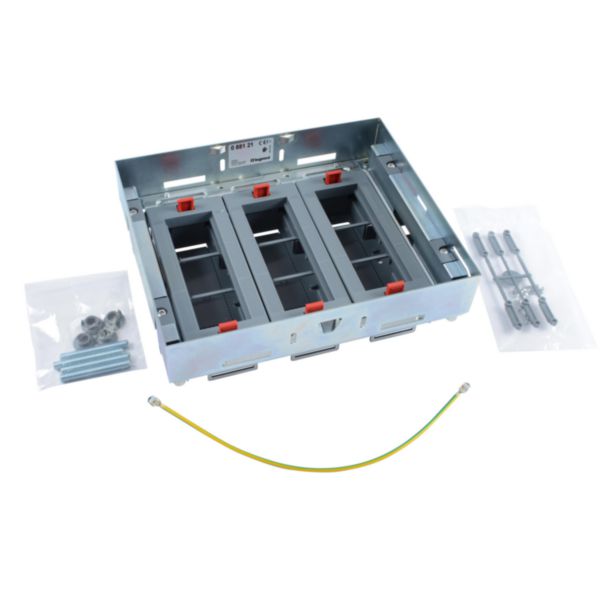

Horizontal adjustable supports kit for flush floor box, capacity 18 modules (three baskets 6 modules)

LEGRAND

Horizontal adjustable supports kit for flush floor box, capacity 18 modules (three baskets 6 modules)

REF. 088121 EAN. 3414970756053
Equipment support kit forming the body of the flush floor box, supplying power and data to multiple workstations. Adjustable baskets from 92mm to 122mm, 18-module capacity, compatible with Mosaic and Arteor devices, galvanized steel frame
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Update product
title
You can only compare 4 products, you must remove 1 to add this one
LEGRAND
REF.088122

Horizontal adjustable supports kit for flush floor box, capacity 24 modules (three baskets 8 modules)

Description

Equipment support kit forming the body of the flush floor box, supplying power and data to multiple workstations. Adjustable baskets from 92mm to 122mm, 18-module capacity, compatible with Mosaic and Arteor devices, galvanized steel frame

Product characteristics
  • Baskets' height adjustable from 92mm to 122mm (from the top of the supports kit) quickly and without tool by manual locking.
  • Baskets compatible with the wiring devices Legrand Mosaic and Arteor. pre - cut cables outputs to facilitate their installation.
  • Equipped with four adjustable feet up to a 122mm height. Over that use the accessory : cat N° 088142 (maximum 300mm).
  • kit's frame in galvanised steel for protection against corrosion.
  • Baskets supports meet the IEC/EN 60670-23 standard. Moreover, with the lid of floor box closed, they offer a degree of protection IP24 (no risk of digital contact on the electrical connections, and protection against water projections)
Recommendation / Restriction
  • Indoor use only.

The product's benefits

Installation
  • Modular floor box to be assembled: matches your needs (type of installation, number of modules, finishes), gives time for reflection, protects the product during the progression of the work site (the installation follows the steps of the site).
Usage
  • Adapts to the surrounding environment thanks to the choice possibilities of the flush lid to associate with it: stainless steel or brass finish.
Avantages
  • A universal range available in three sizes, adapted to any kind of floor (raised floors, screed floors) and upgradable because equipped with commons wiring devices supports (a standard floor box can become a flush one without touching the electrical connexions).
  • Equipped with four mounting claws to lock its frame to the floor, the flush floor box can even so be easily installed in a raised floor.

Technical characteristics

Number of appliances to build in 9
Number of conduit inlets 12
Length 264 mm
Width 219 mm
Depth 90 mm
Model Support shape
Mounting method installation unit Snap
Number of strain relieves 6
Material Other

Documentation

3 documents
Instruction Use
LE09679AA-06.pdf pdf (3.23 Mo)
Technical Sheet
F03335EN-04.pdf pdf (4.72 Mo)
Technical Sheet
F03335FR-04.pdf pdf (4.71 Mo)
10 documents
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
3D Autocad
3D_LG-088121.stp ifc (20.5 Mo)
BIM Data
BIM Data
BIM Data
3 documents
Catalogue Commercial Page
ex223001_1145.pdf pdf (0.12 Mo)
Catalogue Technical Page
ex223001_1146.pdf pdf (0.48 Mo)
Catalogue Technical Page
ex223001_1147.pdf pdf (0.47 Mo)
