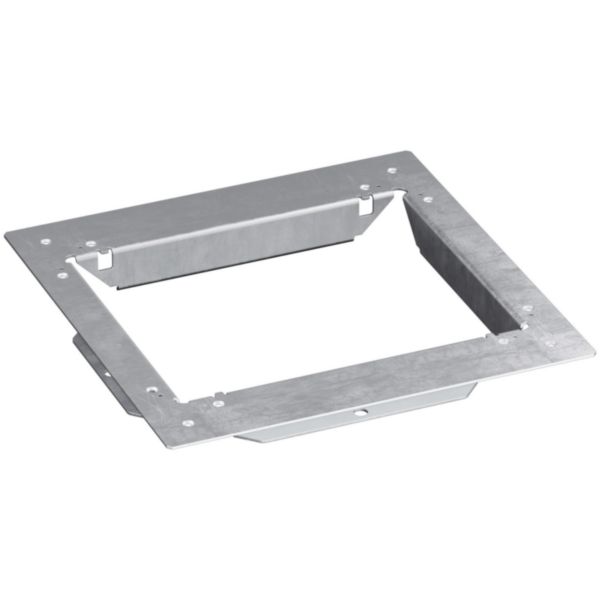

Adaptation plate of the universal backbox for a floor box capacity 12 modules vertical or 18 modules horizontal

Name: Adaptation plate of the universal backbox for a floor box capacity 12 modules vertical or 18 modules horizontal
SKU: 088082

LEGRAND

REF. 088082 EAN. 3414970755674

Compare You can only compare 4 products, you must remove 1 to add this one

Galvanised steel material.
Possibility of adding reinforcing rods on its sides through 4 pre - drilled ledges (diameter 10mm)
Installation : reuse the four Fixing screws of the upper plate of the universal backbox.

Floor box modular to compose : matchs with your needs (type of installation, number of modules, finishes), gives time for reflexion, protects the product during the progression of the work site (the installation follows the steps of the site).

Flush with the concrete screed, the adaptation plate will naturally be covered by the final coating to ensure a perfect integration of the floor box.

Width	330 mm
Height	37 mm
Depth	330 mm
Suitable for subfloor duct countersunk (closed)	No
Suitable for subfloor duct overhead closed	No
Built-in opening for floor column	No

Built-in opening for built-in unit	Rectangular
Material side wall	Steel
Suitable for placing of sealing	No
Decoupling possibility cover from base unit	No
Bottom plate	No
