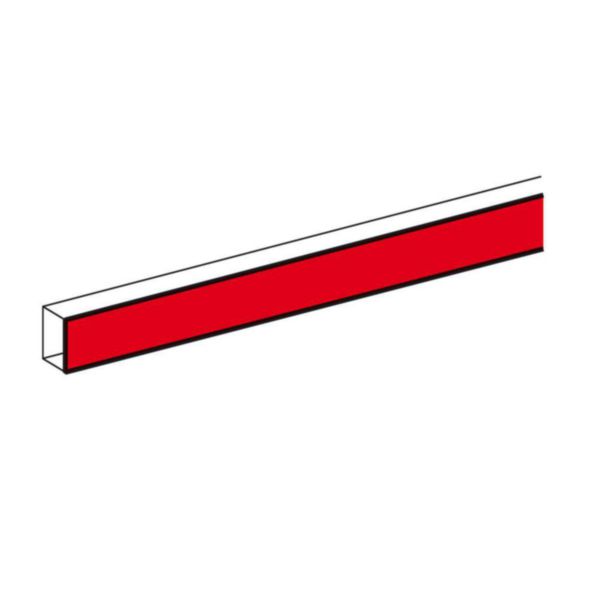

Name: Full rigid cover width 65mm for universal Aluminium trunking
SKU: 011110

Full rigid cover width 65mm for universal Aluminium trunking

DLP LEGRAND

Full rigid cover width 65mm for universal Aluminium trunking

REF. 011110 EAN. 3245060111106

Compare You can only compare 4 products, you must remove 1 to add this one

Delivered in length of 2m
Compatible with universal DLP Aluminium trunking cat.no 011102, 011103 and 011114
Material : aluminium anodic natural

Assembly body-cover by clipping (disassembling with a tool). Cut out using a saw and of a cut box (cat.no. 0 306 98)

Surface protection	Anodised
Colour	Aluminium
With protective foil	Yes
Operating / setting temperature (Min-Max)	15-60 °C
Height	14.7 mm
degree of impact strength (IK)	IK07
Degree of protection (IP)	IP40
Storage temperature (Min-Max)	-25-60 °C

2 documents

Select all

Technical Sheet

F00639EN-05.pdf pdf (2.48 Mo)

Technical Sheet

F00639FR-05.pdf pdf (2.48 Mo)

3 documents

Select all

Catalogue Technical Page

ex223001_1095.pdf pdf (0.05 Mo)

Catalogue Commercial Page

ex223001_1092.pdf pdf (0.09 Mo)

Catalogue Commercial Page

ex223001_1093.pdf pdf (0.09 Mo)

1 document

Select all

PEP

LGRP-2014-040-V1-EN.pdf pdf (1.34 Mo)

Full rigid cover width 65mm for universal Aluminium trunking
