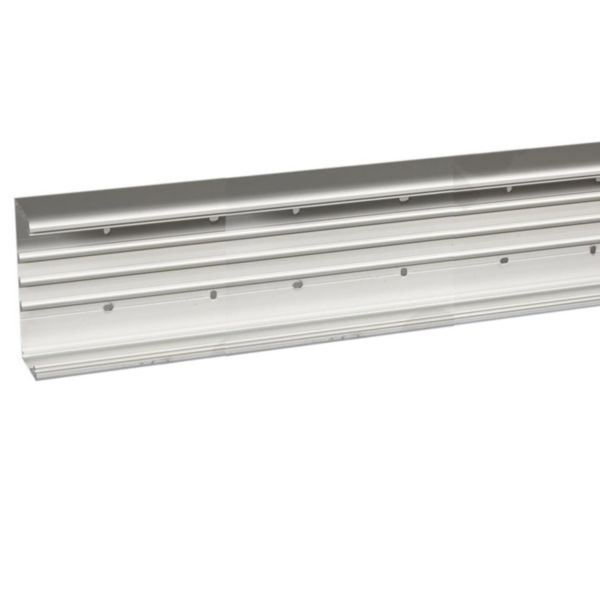

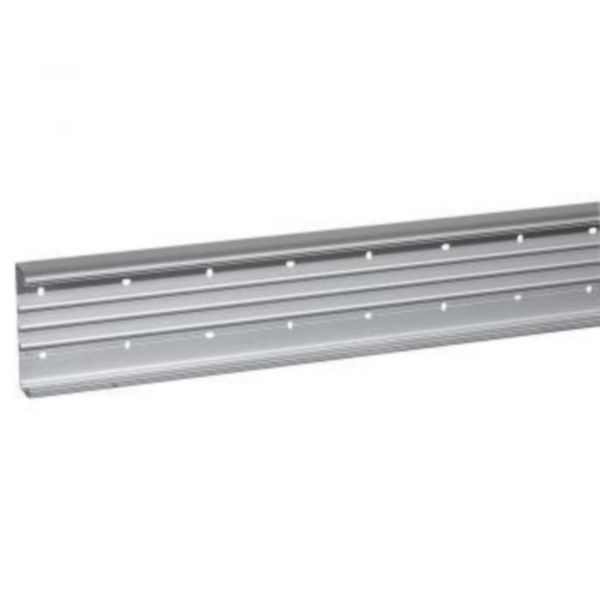

Name: Universal Aluminium trunking 2 compartments 65x150mm
SKU: 011103

Universal Aluminium trunking 2 compartments 65x150mm

DLP LEGRAND

Universal Aluminium trunking 2 compartments 65x150mm

REF. 011103 EAN. 3245060111038

Compare You can only compare 4 products, you must remove 1 to add this one

Funds of the bodies provided with holes for fixing, facilitating the upgrade of the trunking (balance/slope)

Funds of the bodies provided with holes for fixing, facilitating the upgrade of the trunking (balance/slope)

Width	150 mm
Depth	65 mm
Length	2000 mm
Number of covers	1
Covers included	No
Cover width 1	130 mm
Symmetric	Yes
Construction type rectangular	Yes
Material	Aluminium
Material quality	Other
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Anodised

Colour	Aluminium
Construction rear wall (inner side)	Perforated
With protective foil	Yes
Number of plug-in partitions	3
With duct connector	No
Bottom perforation	Yes
Mounting method cover	Spanned
With cable fixing clip	No
Usable cross section	8200 mm²
Degree of protection (IP)	IP40
degree of impact strength (IK)	IK07
Operating / setting temperature	15-60 °C
Storage temperature	-25-60 °C
