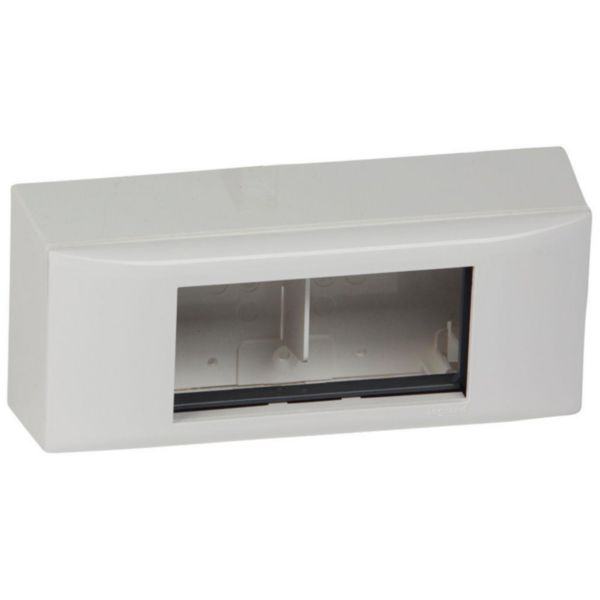

Frame Mosaic 4 modules, installs alongside the DLPlus mini-trunking

DLPlus LEGRAND

Frame Mosaic 4 modules, installs alongside the DLPlus mini-trunking

REF. 031613 EAN. 3245060316136
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Respect the protection index
  • Improvement of aesthetics (covering of the cut)
  • Delivered with an end cap and a connector board for separation of currents
  • Dimension : 127x74x60mm
  • Colour: white

The product's benefits

Installation
  • 4 gangs mounting possible in horizontal position, at the end or on the mini-trunking
Usage
  • Allows a protected connection of the various wires and cables from the mini-trunking and plinth to the mechanisms

Technical characteristics

Height baseboard duct 12.5 mm
Depth plinth skirting duct 32 mm
Equipped with None
Mounting method installation unit Standard
Material Plastic
Halogen free Yes
Antimicrobial treatment No
Colour White
RAL-number 9003
Decoration None

Documentation

2 documents
Technical Sheet
F00383FR-04.pdf pdf (2.25 Mo)
Instruction Use
104870268-01.pdf pdf (0.54 Mo)
1 document
Catalogue Commercial Page
ex223001_1047.pdf pdf (0.16 Mo)
2 documents
PEP
LGRP-01603-V02.01-EN.pdf pdf (0.92 Mo)
PEP
LGRP-01603-V02.01-FR.pdf pdf (0.88 Mo)
